Calibration
WTX110 A4774-1.0 HBM: public 171
S Three 1000kg load cells with sensitivity of 1.99995mV/V, 2.00005mV/V and
2.00000mV/V respectively are used.
S The maximum load is 1500kg; the scale division is 0.5kg.
S The weight of the empty tank is 600kg.
Zero point Load point

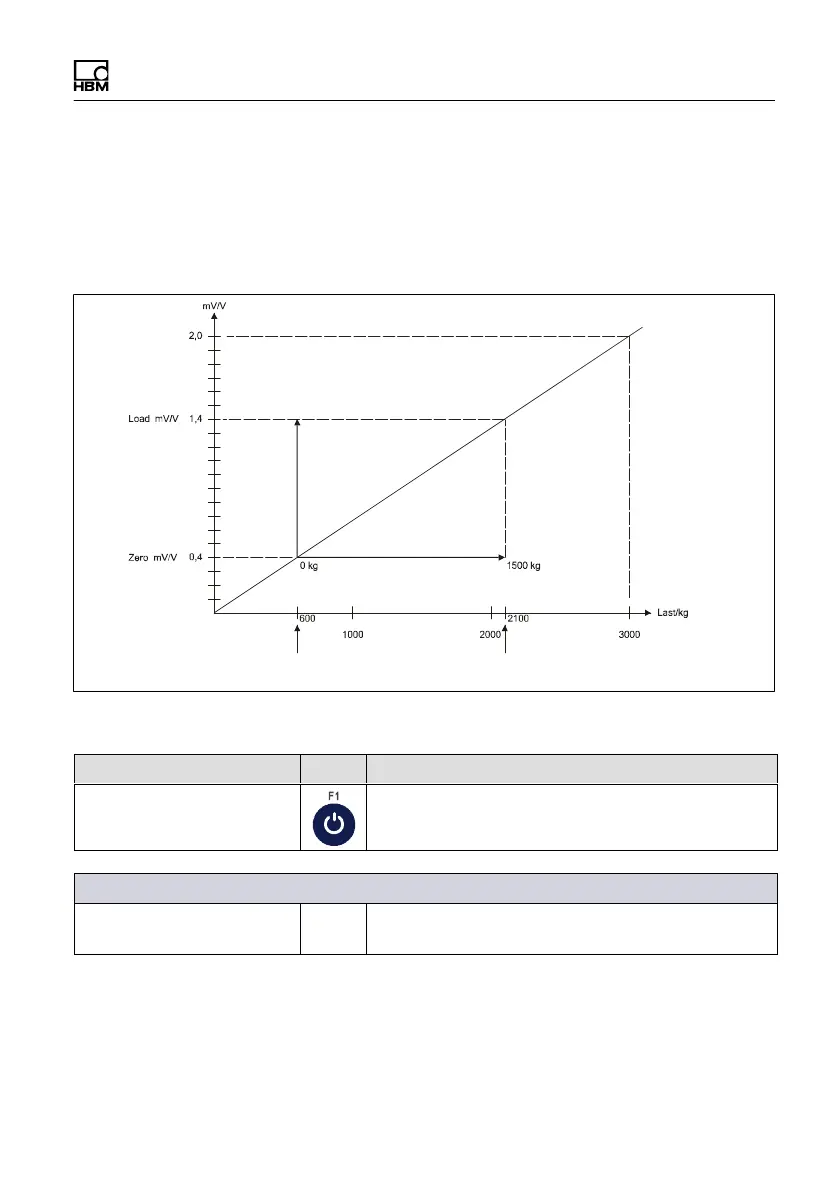

Fig. 11.3 Example of calibration of a tank weigher
Menu Key Function/Secondary selection
Select group 1-9 Press 2 x for group 2 Calibration
→ Linearization points present
Fixpoints active! Linearization entries have already been made;
they may influence the calibration.
To Next Page
