Installation
44 A4774-1.0 HBM: public WTX110

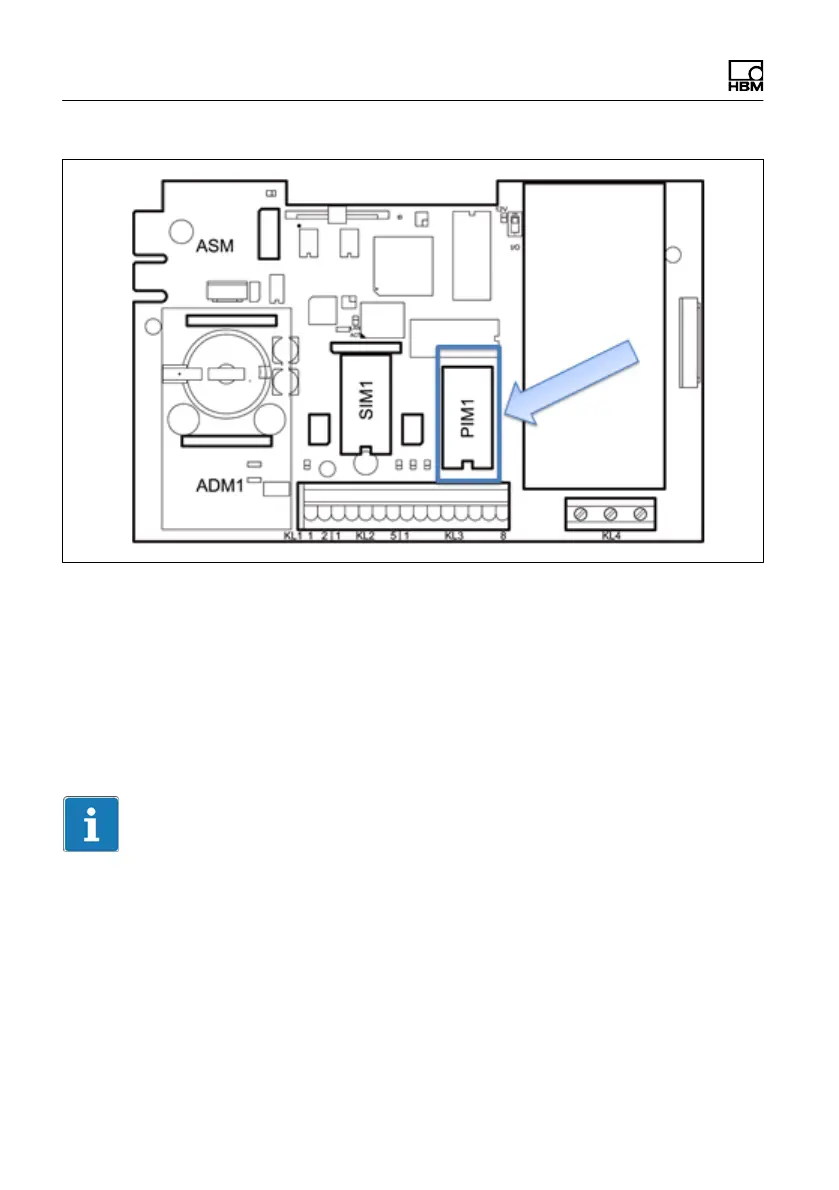

Fig. 4.8 Positioning of the AO module (DAU15) on the WTX110 motherboard
The resolution of the analog output signal (gross or net weight) is 15 bits
(32,768 increments). The output signal is active and potential-free.
The AO module (DAU15) is in Service mode/Config.Config. The Analog Out
group 'DAU15' can optionally be adjusted to 0/2…10 V or 0/4…20 mA. The
resolution of the analog output signal is 15 bits (32,768 increments). The
output signal is active and potential-free.
Information
The AO module must be always calibrated.
