HBM WTX110 - Power Supply for Peripherals

Installation
WTX110 A4774-1.0 HBM: public 45

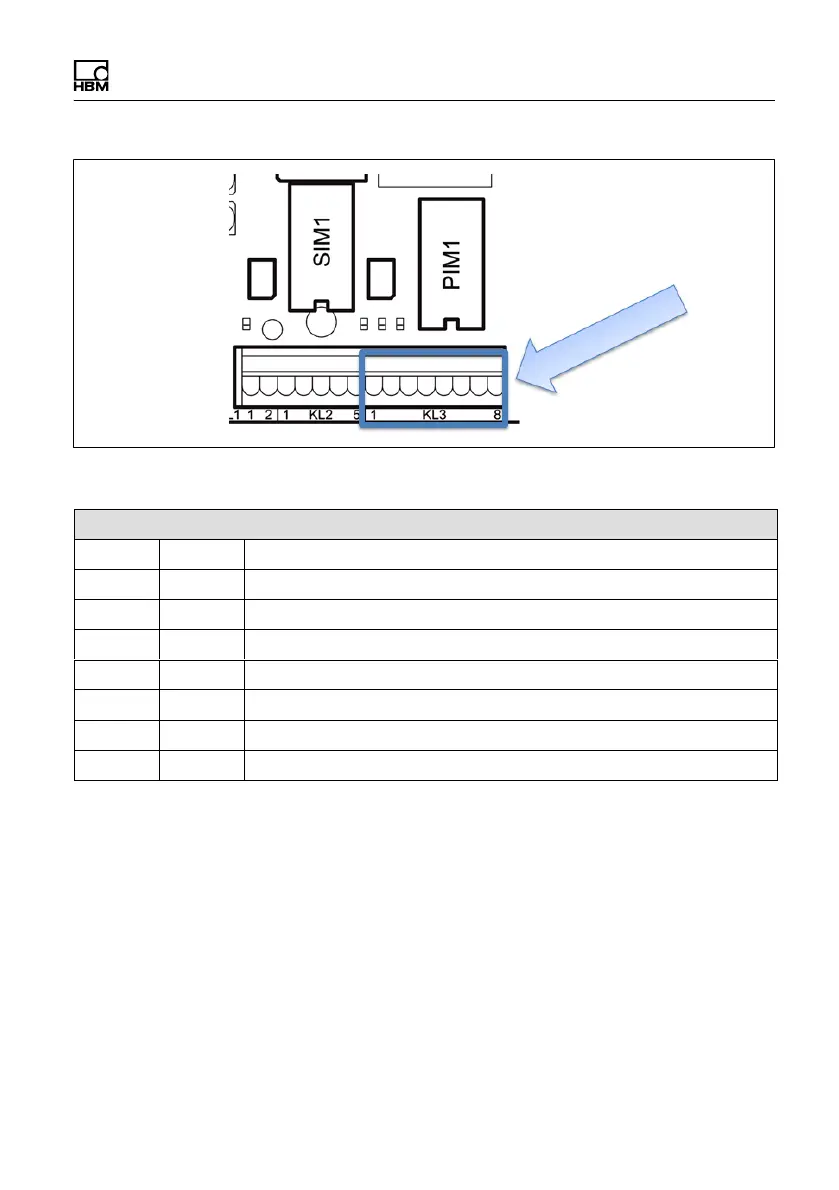

Fig. 4.9 Connection of analog output to KL3
KL3: Analog output
1
2
3 I+ Current output 0/4–20 mA (+)
4 I‒ Current output 0/4–20 mA (–)
5
6 U+ Voltage output 0/2–10 V (+)
7 UI‒ Voltage output 0/2–10 V (–)
8
