HEIDENHAIN iTNC 530 151

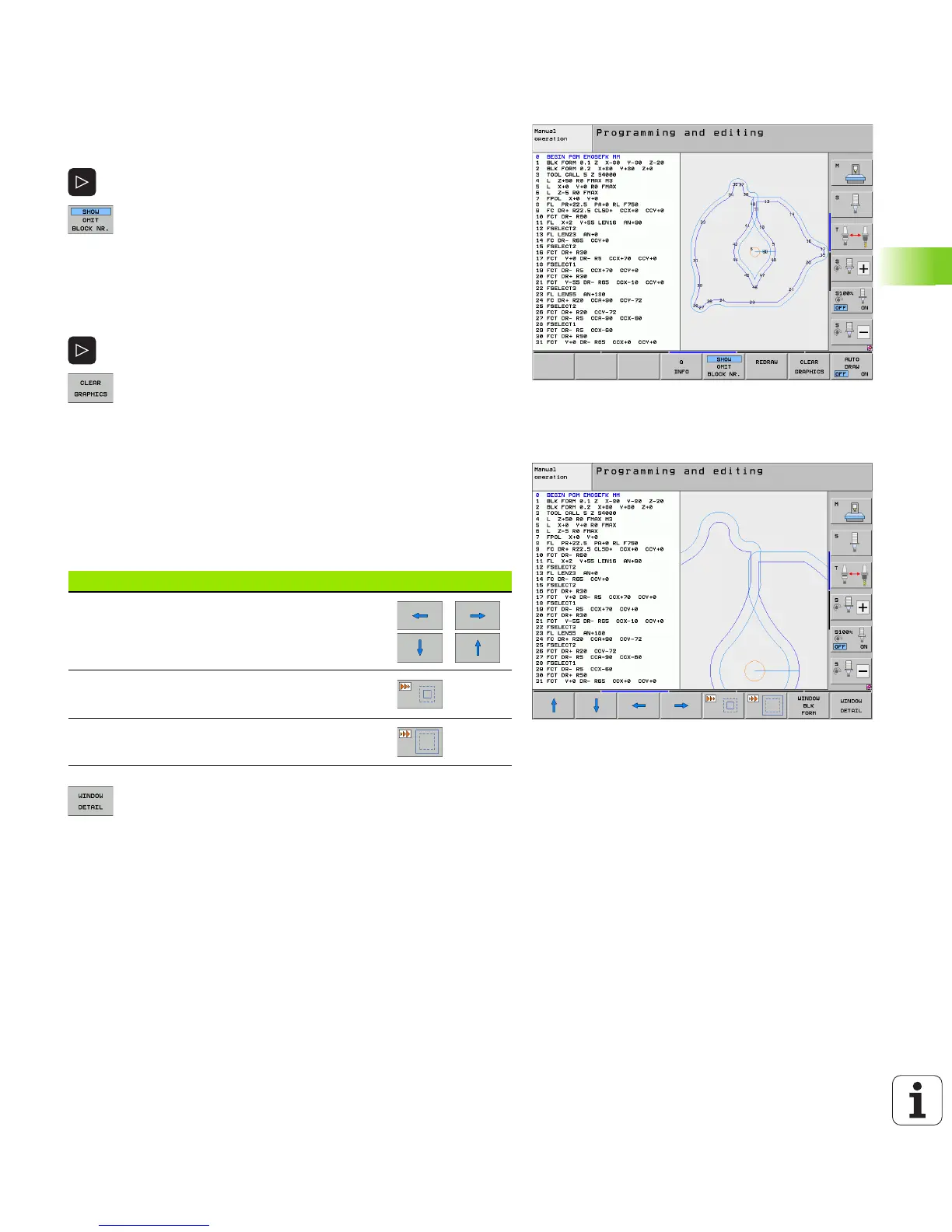

4.4 Programming Graphics
Block number display ON/OFF
U Shift the soft-key row: see figure
U To show block numbers: Set the SHOW OMIT BLOCK
NR. soft key to SHOW.
U To hide block numbers: Set the SHOW OMIT BLOCK
NR. soft key to OMIT.
Erasing the graphic
U Shift the soft-key row: see figure
U Erase graphic: Press CLEAR GRAPHICS soft key.
Magnifying or reducing a detail
You can select the graphics display. by selecting a detail with the
frame overlay. You can now magnify or reduce the selected detail.
U Select the soft-key row for detail magnification/reduction (second
row, see figure)
The following functions are available:
U Confirm the selected area with the WINDOW DETAIL
soft key.
With the WINDOW BLK FORM soft key, you can restore the original
section.
Function Soft key
Show and move the frame overlay. Press and
hold the desired soft key to move the frame
overlay
Reduce the frame overlay—press and hold the
soft key to reduce the detail
Enlarge the frame overlay—press and hold the
soft key to magnify the detail
