64 First Steps with the iTNC 530
1.3 Programming the First Part
Program a simple contour

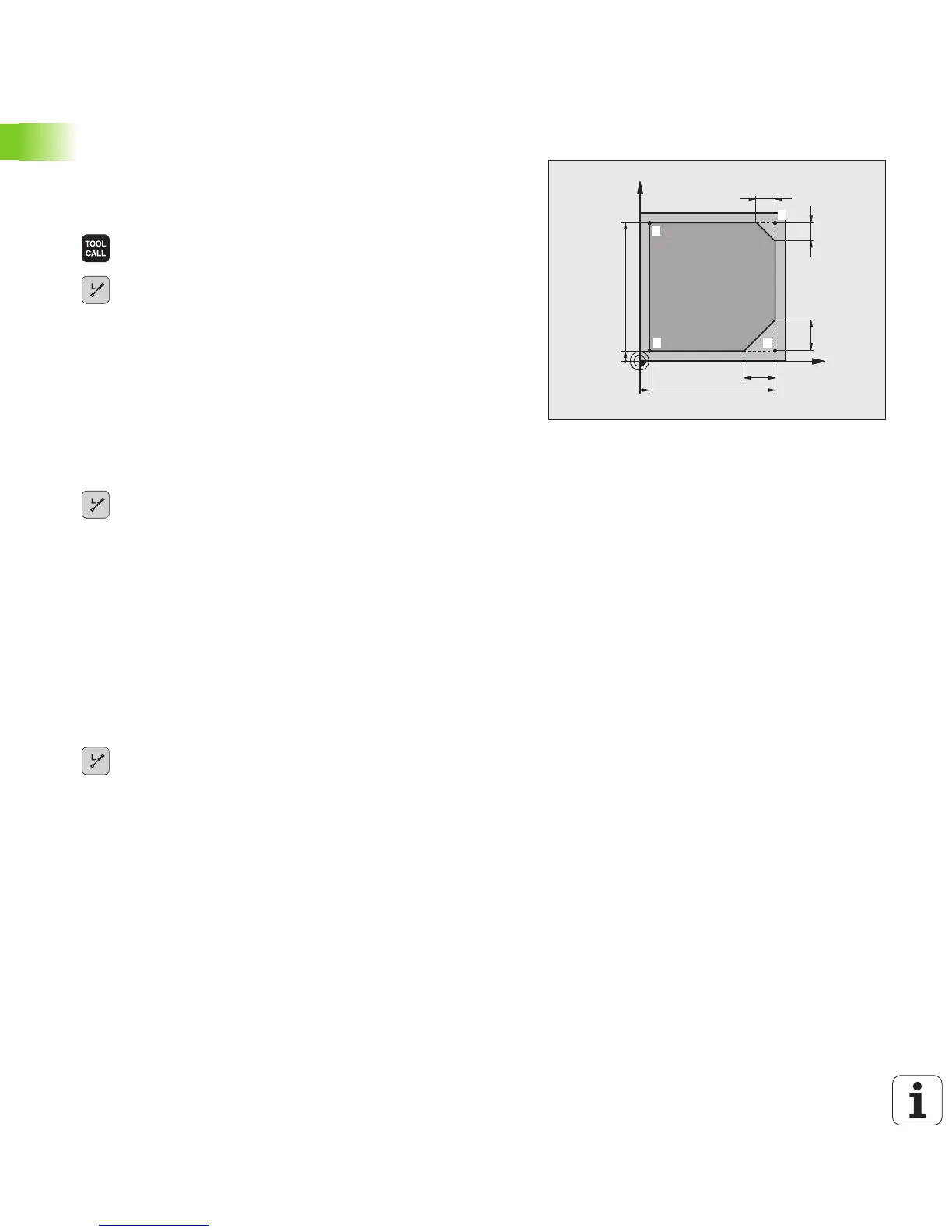

The contour shown to the right is to be milled once to a depth of 5 mm.
You have already defined the workpiece blank. After you have initiated
a dialog through a function key, enter all the data requested by the
TNC in the screen header.
U Call the tool: Enter the tool data. Confirm each of your
entries with the ENT key. Do not forget the tool axis
U Retract the tool: Press the orange axis key Z in order
to get clear in the tool axis, and enter the value for the
position to be approached, e.g. 250. Confirm with the
ENT key
U Confirm Radius comp.: RL/RR/no comp? by pressing
the ENT key: Do not activate the radius compensation
U Confirm Feed rate F=? with the ENT key: Move at
rapid traverse (FMAX)
U Confirm the Miscellaneous function M? with the
END key: The TNC saves the entered positioning
block
U Preposition the tool in the working plane: Press the
orange X axis key and enter the value for the position
to be approached, e.g. -20
U Press the orange Y axis key and enter the value for the
position to be approached, e.g. -20. Confirm with the
ENT key
U Confirm Radius comp.: RL/RR/no comp? by pressing
the ENT key: Do not activate the radius compensation
U Confirm Feed rate F=? with the ENT key: Move at
rapid traverse (FMAX)
U Confirm the Miscellaneous function M? with the
END key: The TNC saves the entered positioning
block
U Move the tool to workpiece depth: Press the orange Y
axis key and enter the value for the position to be
approached, e.g. -5. Confirm with the ENT key
U Confirm Radius comp.: RL/RR/no comp? by pressing
the ENT key: Do not activate the radius compensation
U Feed rate F=? Enter the positioning feed rate, e.g.
3000 mm/min and confirm with the ENT key
U Miscellaneous function M? Switch on the spindle and
coolant, e.g. M13. Confirm with the END key: The TNC
saves the entered positioning block
X
Y
9
5
95
5
10
10
20
20
1
4
2
3
