HEIDENHAIN iTNC 530 527

14.2 Moving the Machine Axes

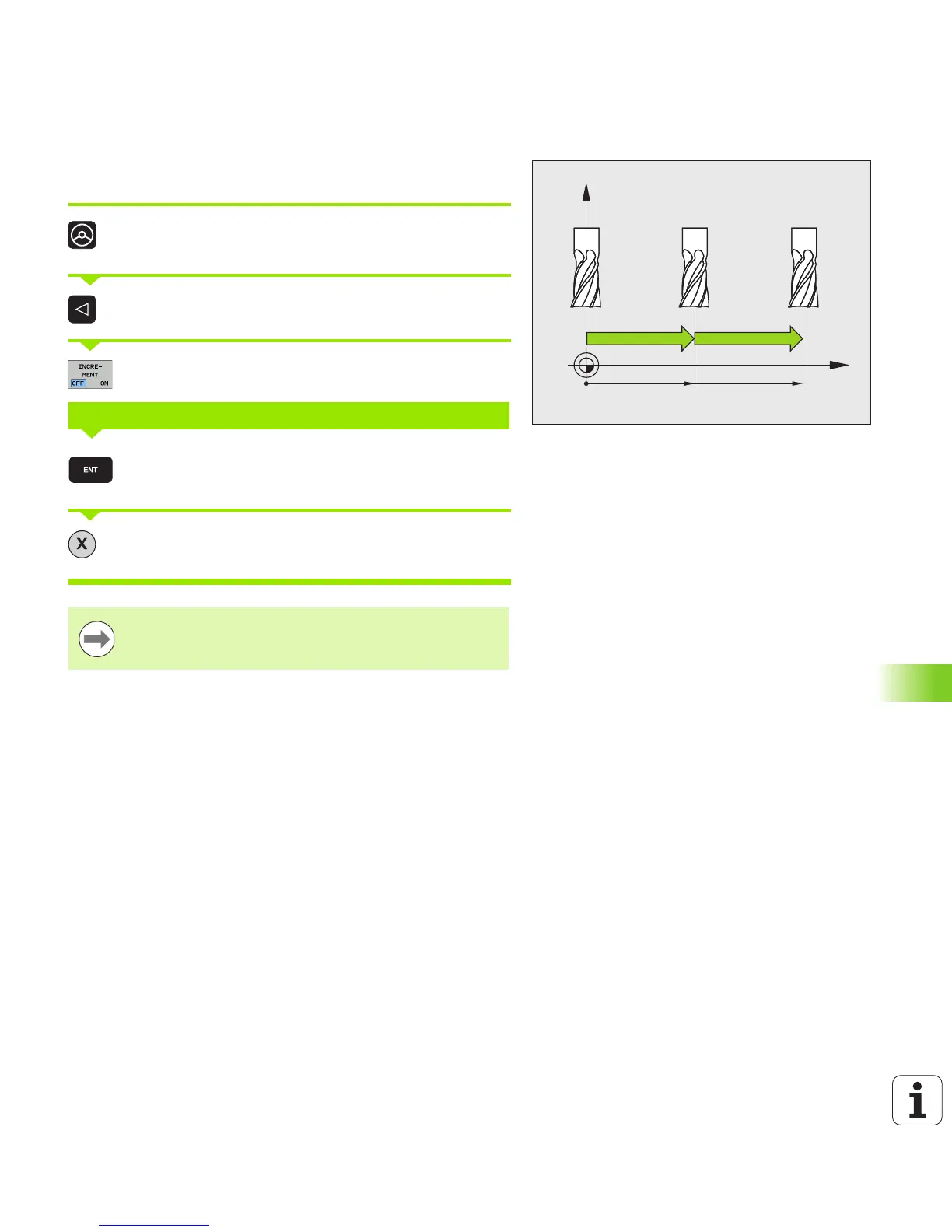

Incremental jog positioning

With incremental jog positioning you can move a machine axis by a

preset distance.

Select the Manual Operation or Electronic Handwheel

mode.

Shift the soft-key row.

Select incremental jog positioning: Switch the

INCREMENT soft key to ON.

Enter the jog increment in mm, and confirm with the

ENT key.

Press the machine axis direction button as often as

desired.

JOG INCREMENT =

The maximum permissible value for infeed is 10 mm.
