HEIDENHAIN iTNC 530 443
11.13 Freely Definable Tables

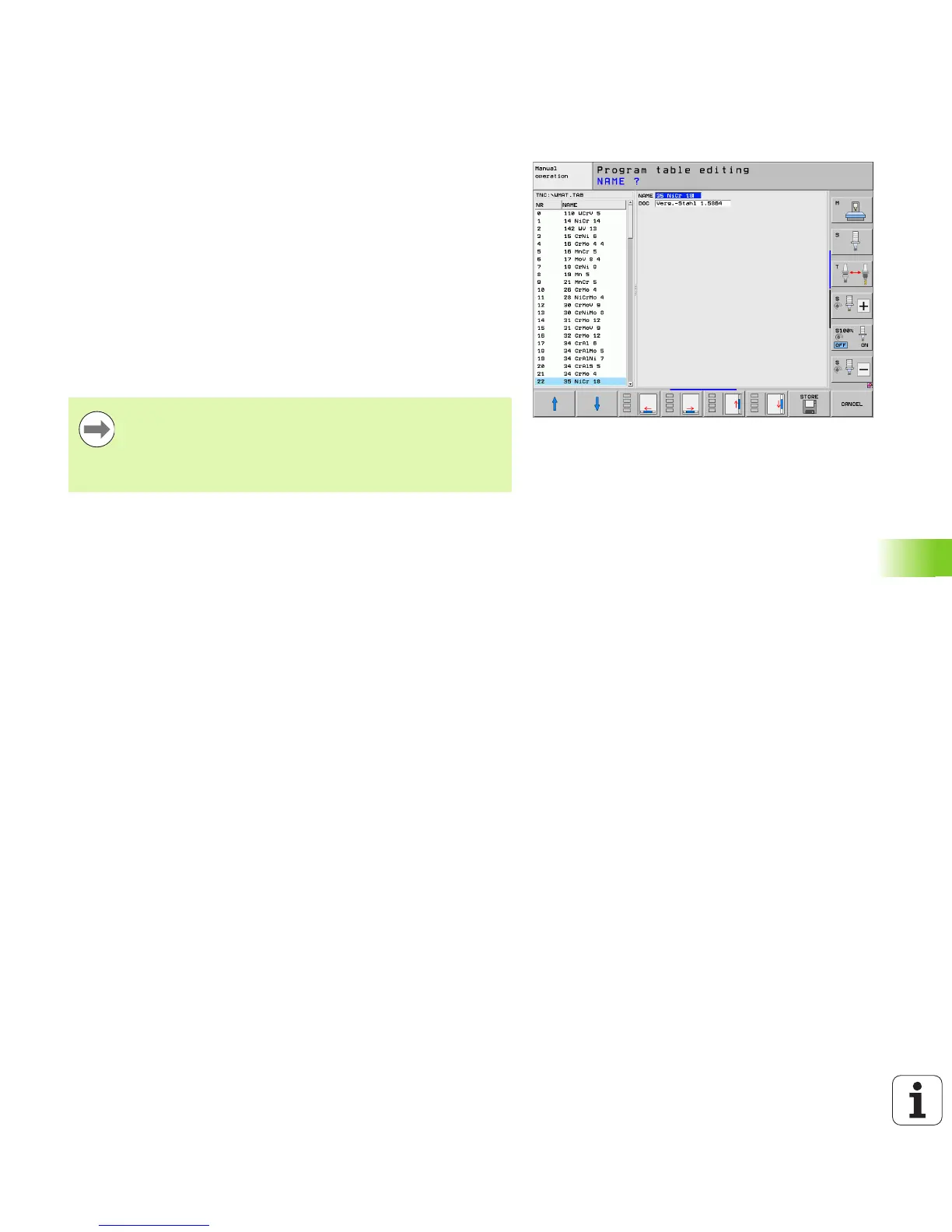

Switching between table and form view
All tables with the file extension .TAB can be opened in either list view
or form view.
U Press the FORM LIST soft key. The TNC switches to the view that
is not highlighted in the soft key.
In the form view the TNC lists the line numbers with the contents of
the first column in the left half of the screen.
In the right half you can change the data.
U Press the key or click in the ENT entry field with the mouse.
U To save any data you have changed, press the END key or the SAVE
soft key.
U To discard any changes, press the DEL key or the CANCEL soft key.
The TNC aligns the entry fields on the right side left-
justified according to the longest dialog text. If an entry
field exceeds the greatest width that can be displayed, a
scrollbar appears at the bottom of the window. Use the
mouse or soft keys to scroll.
