390 Programming: Special Functions
11.3 Fixture Monitoring (Software Option)
Fixture templates
HEIDENHAIN provides various fixture templates in a fixture library. If
you need any of them, please contact HEIDENHAIN (e-mail address
service.nc-pgm@heidenhain.de) or your machine tool builder.
Setting parameter values for the fixture:
FixtureWizard

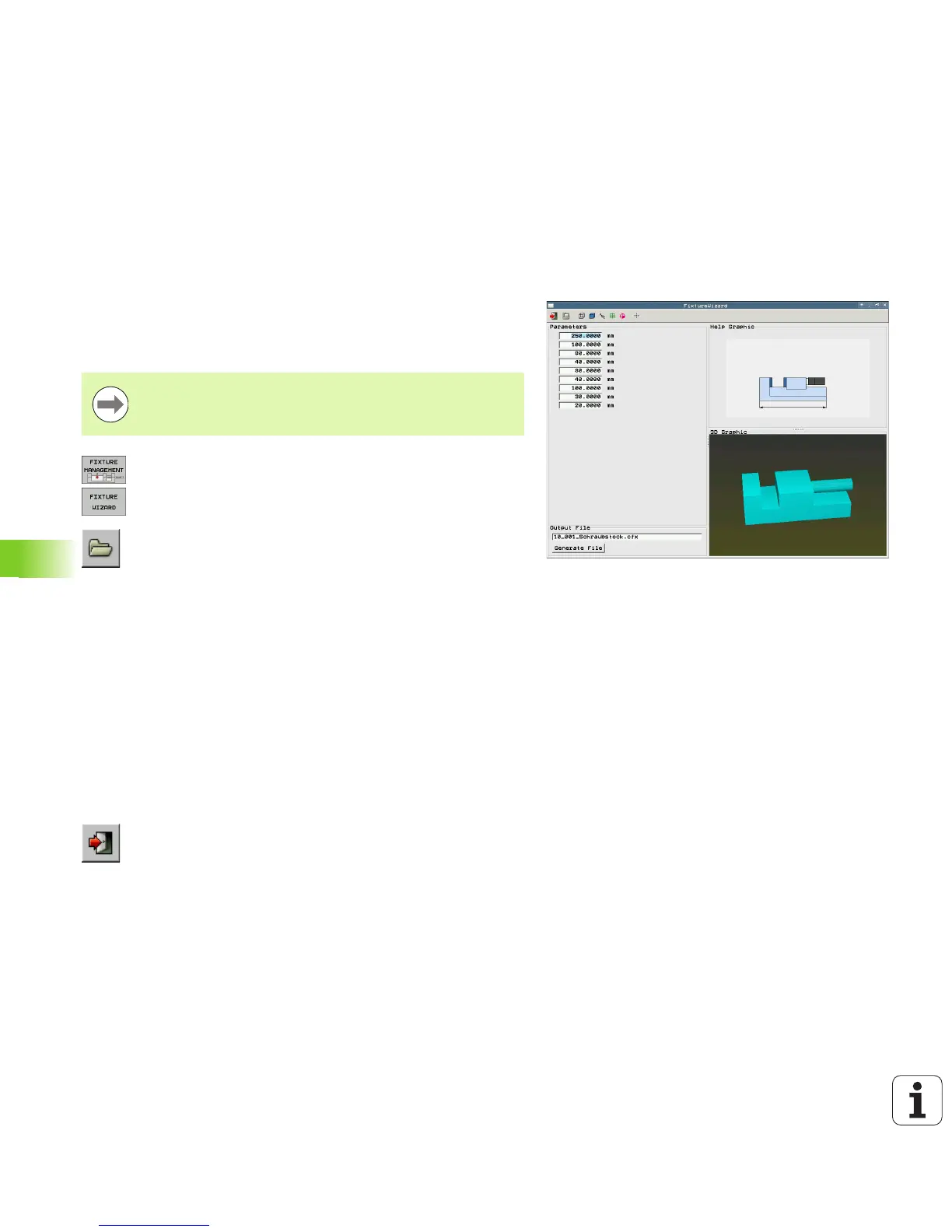

With the FixtureWizard you can use a fixture template to create a
fixture with exact dimensions. HEIDENHAIN provides templates for
standard fixtures. Your machine tool builder may also provide fixture
templates.
U Call the fixture management
U Start the FixtureWizard: The TNC opens the menu for
parameterization of fixture templates
U Select the fixture template: The TNC opens the
window for selecting a fixture template (files with
extension CFT)
U Use the mouse to select the fixture template for
which you want to enter values and confirm with Open
U Enter the values of all the fixture parameters shown in
the left window. Use the arrow keys to move the
cursor to the next input field. After value entry, the
TNC updates the 3-D view of the fixture in the
window below. As far as is available, the TNC displays
an illustration in the upper right window graphically
showing the fixture parameter to be entered.
U Enter the name of the defined fixture in the Output
file input field and confirm with the Generate file
soft key. It is not necessary to enter the file extension
(CFX for parameterized)
U Exit FixtureWizard
Before you start the FixtureWizard, you must have copied
the fixture template and its parameters to the TNC!
