70 First Steps with the iTNC 530
1.4 Graphically Testing the Program
1.4 Graphically Testing the
Program

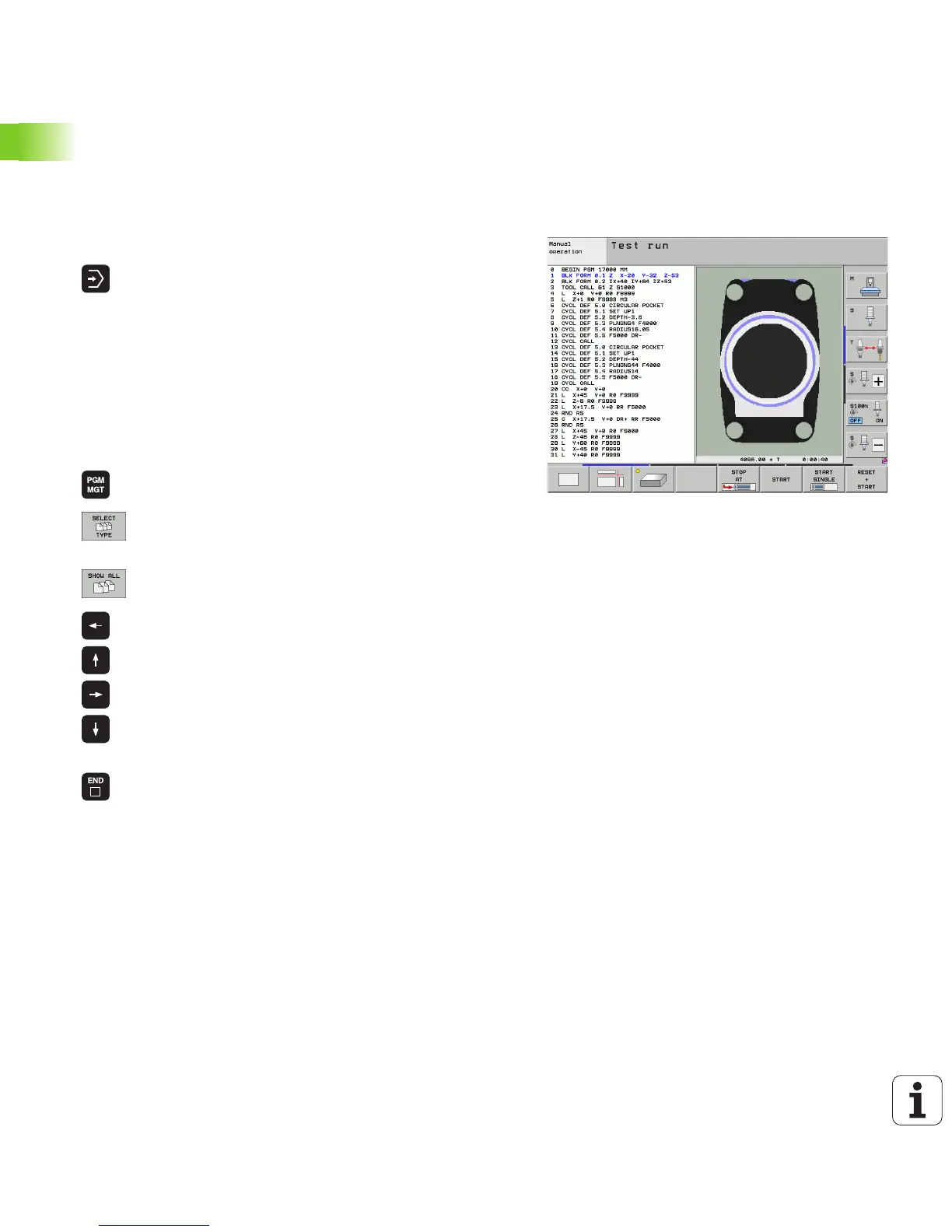

Select the correct operating mode
You can test programs only in the Test Run mode:
U Press the operating modes key: The TNC goes into
the Test Run mode
Further information on this topic
Operating modes of the TNC: See “Operating Modes” on page 84
Testing programs: See “Test Run” on page 597
Select the tool table for the test run
You only need to execute this step if you have not activated a tool
table in the Test Run mode.
U Press the PGM MGT key: the TNC displays the file
management
U Press the SELECT TYPE soft key: The TNC shows a
soft-key menu for selection of the file type to be
displayed
U Press the SHOW ALL soft key: The TNC shows all
saved files in the right window
U Move the highlight to the left onto the directories
U Move the highlight to the TNC:\ directory
U Move the highlight to the right onto the files
U Move the highlight to the file TOOL.T (active tool
table) and load with the ENT key: TOOL.T receives
that status S and is therefore active for the Test Run
U Press the END key: Leave the file manager
Further information on this topic
Tool management: See “Entering tool data in the table” on page 172
Testing programs: See “Test Run” on page 597
