658 MOD Functions
17.21 Configuring the HR 550 FS Wireless Handwheel
Selecting the transmitter power
U Press the MOD key to select the MOD function.
U Scroll through the soft-key row.

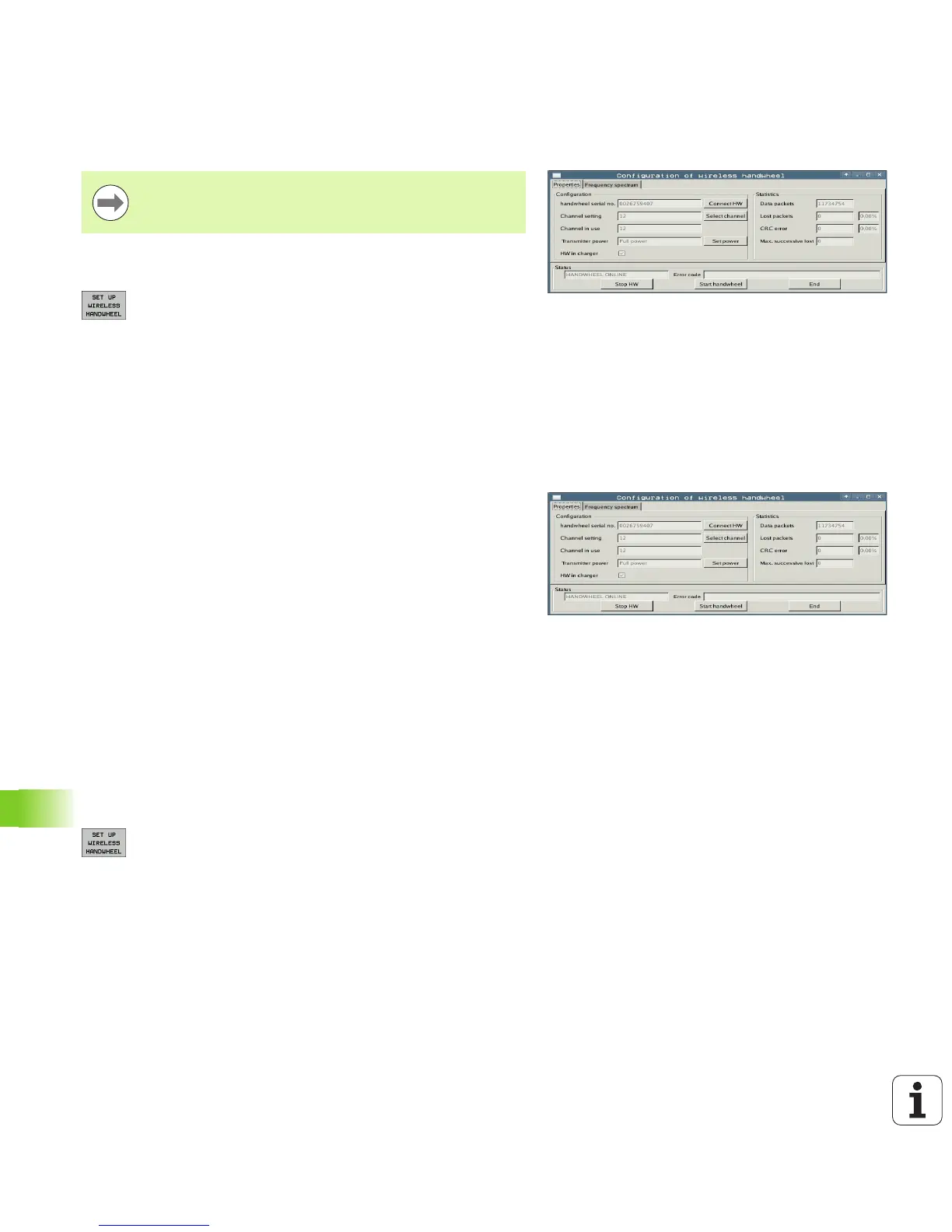

U Select the configuration menu for the wireless
handwheel: Press the SET UP WIRELESS
HANDWHEEL soft key.
U Click the Set power button: The TNC shows the three
available power settings. Click the desired setting.
U To save the configuration and exit the configuration
menu, press the END button.
Statistics
Under Statistics, the TNC displays information about the
transmission quality.
If the reception quality is poor so that a proper and safe stop of the
axes cannot be ensured anymore, an emergency-stop reaction of the
wireless handwheel is triggered.
The displayed value Max. successive lost indicates whether
reception quality is poor. If the TNC repeatedly displays values greater
than 2 during normal operation of the wireless handwheel within the
desired range of use, then there is a risk of an undesired
disconnection. This can be corrected by increasing the transmitter
power or by changing to another channel with less radio traffic.
If this occurs, try to improve the transmission quality by selecting
another channel (see “Setting the transmission channel” on page 657)
or by increasing the transmitter power (see “Selecting the transmitter
power” on page 658).
To display the statistical data, proceed as follows:
U Press the MOD key to select the MOD function.
U Scroll through the soft-key row.
U To select the configuration menu for the wireless
handwheel, press the SET UP WIRELESS
HANDWHEEL soft key: The TNC displays the
configuration menu with the statistical data.
Please keep in mind that the transmission range of the
wireless handwheel decreases when the transmitter
power is reduced.
