184 Programming: Tools

5.2 Tool Data

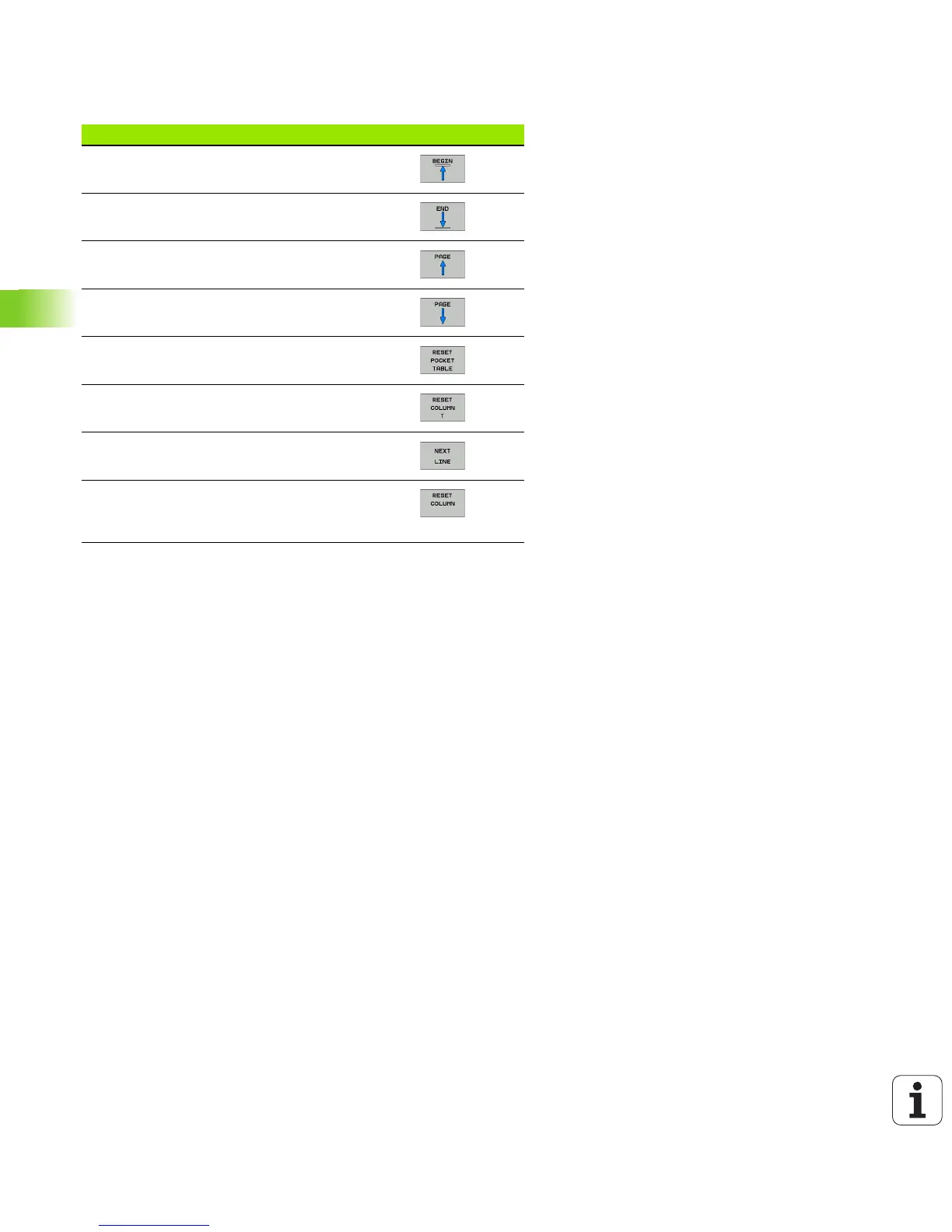

Editing functions for pocket tables Soft key

Select beginning of table

Select end of table

Select previous page in table

Select next page in table

Reset pocket table

Reset tool number column T

Go to beginning of next line

Reset column to original state. Only applies to

the columns RSV, LOCKED_ABOVE, LOCKED_BELOW,

LOCKED_LEFT and LOCKED_RIGHT
