252 Programming: Programming Contours

6.6 Path Contours—FK Free Contour Programming

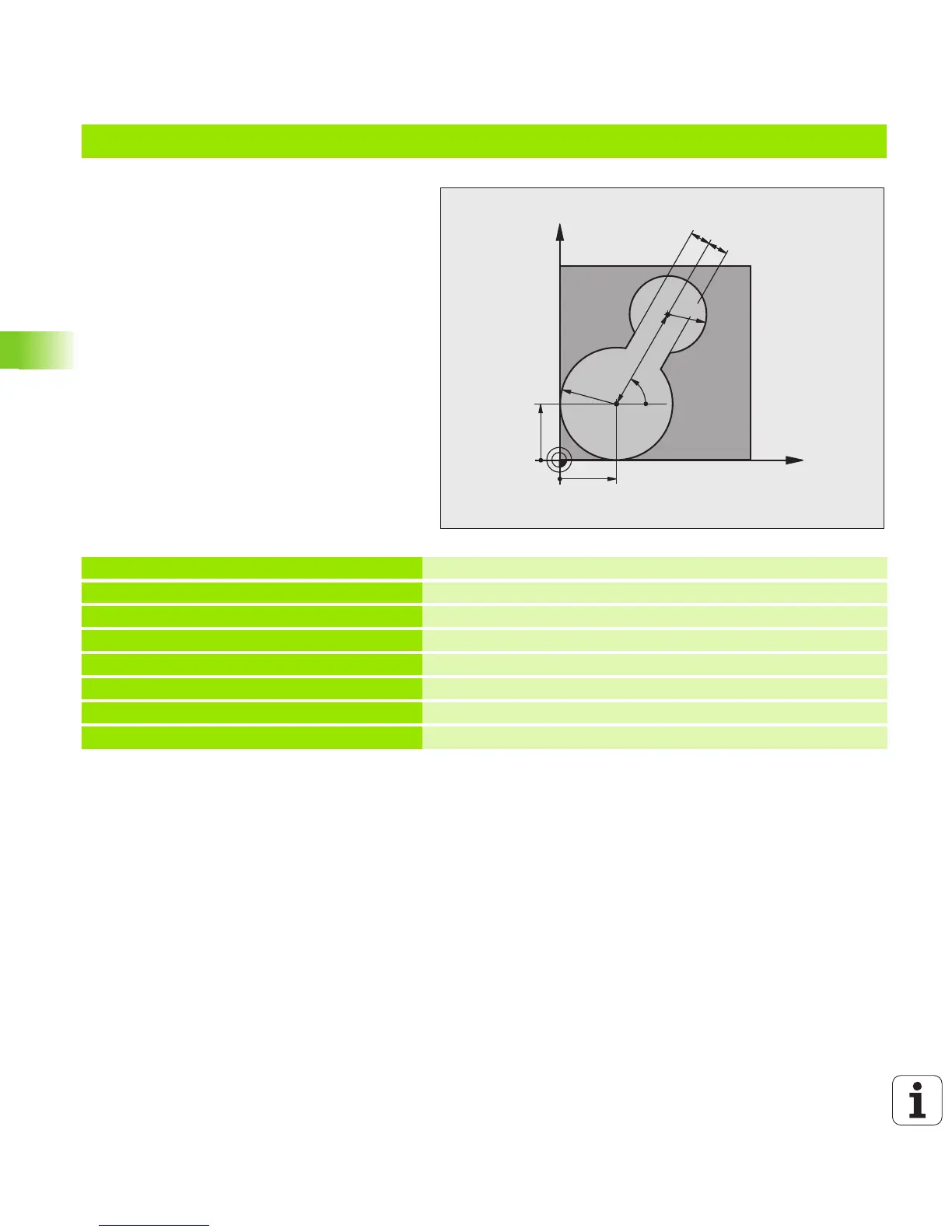

Example: FK programming 2

0 BEGIN PGM FK2 MM

1 BLK FORM 0.1 Z X+0 Y+0 Z-20

Definition of workpiece blank

2 BLK FORM 0.2 X+100 Y+100 Z+0

3 TOOL CALL 1 Z S4000

Tool call

4 L Z+250 R0 FMAX

Retract the tool

5 L X+30 Y+30 R0 FMAX

Pre-position the tool

6 L Z+5 R0 FMAX M3

Pre-position the tool in the tool axis

7 L Z-5 R0 F100

Move to working depth

R30

R20

60°
