632 MOD Functions
17.6 Ethernet Interface

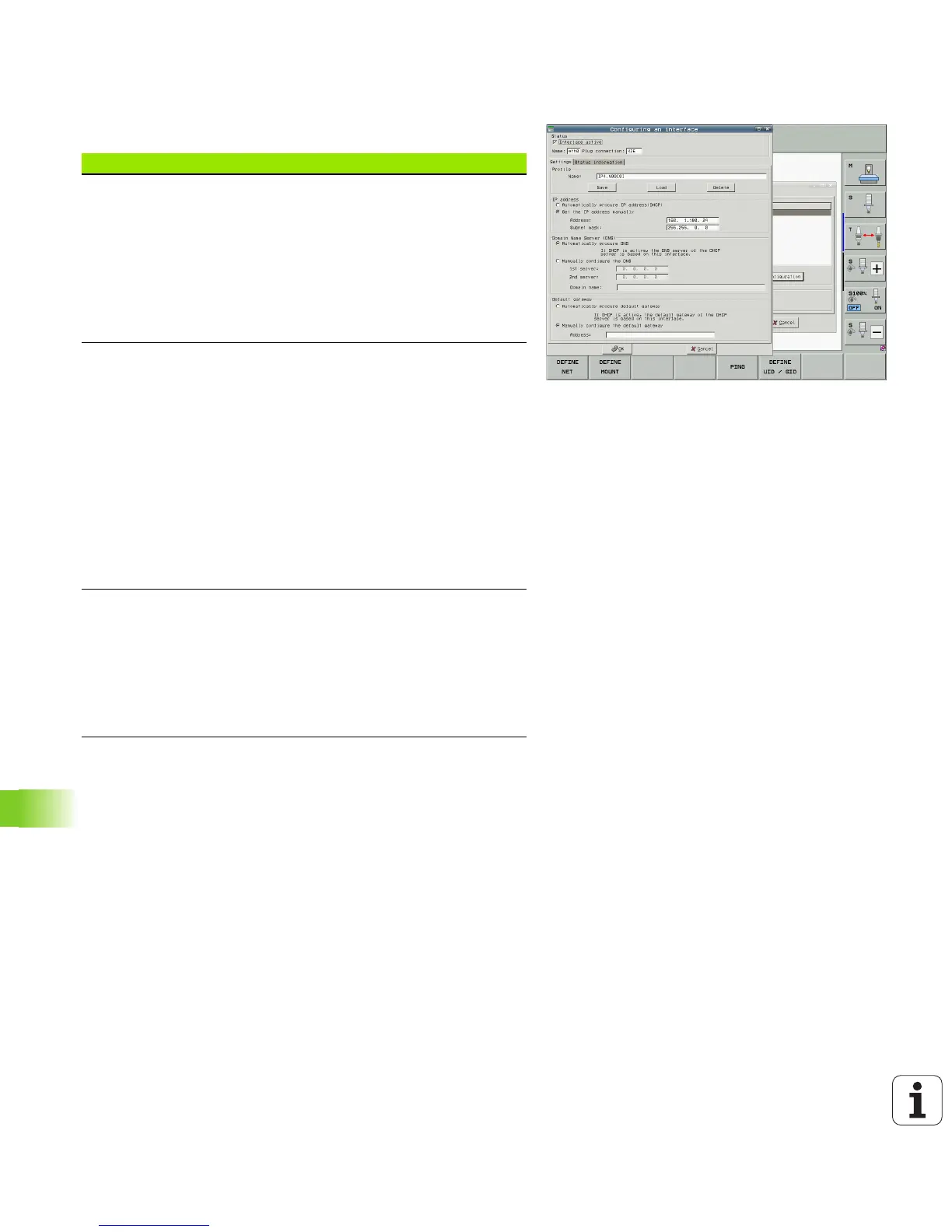

U Press the Configuration button to open the Configuration menu:
Setting Meaning
Status îš„ Interface active:
Connection status of the selected Ethernet
interface
îš„ Name:
Name of the interface you are currently
configuring
îš„ Plug connection:
Number of the plug connection of this
interface on the logic unit of the control.
Profile Here you can create or select a profile in which
all settings shown in this window are stored.
HEIDENHAIN provides two standard profiles:
îš„ LAN-DHCP:
Settings for the standard TNC Ethernet
interface, should work in a standard company
network.
îš„ MachineNet:
Settings for the second, optional Ethernet
interface; for configuration of the machine
network
Press the corresponding buttons to save, load
and delete profiles
IP address îš„ Automatically procure IP address option:
The TNC is to procure the IP address from the
DHCP server
îš„ Set the IP address manually option:
Manually define the IP address and subnet
mask. Input: Four numerical values separated
by points, in each field, e.g. 160.1.180.20 and
255.255.0.0
