Using the Print Top of Form Option
Follow these instructions:
Step Procedure
1 Verify the Transfer TOF is set to +35.
2 Verify the Print TOF is set to +20.
3 Verify the Print LOF is set to +7.

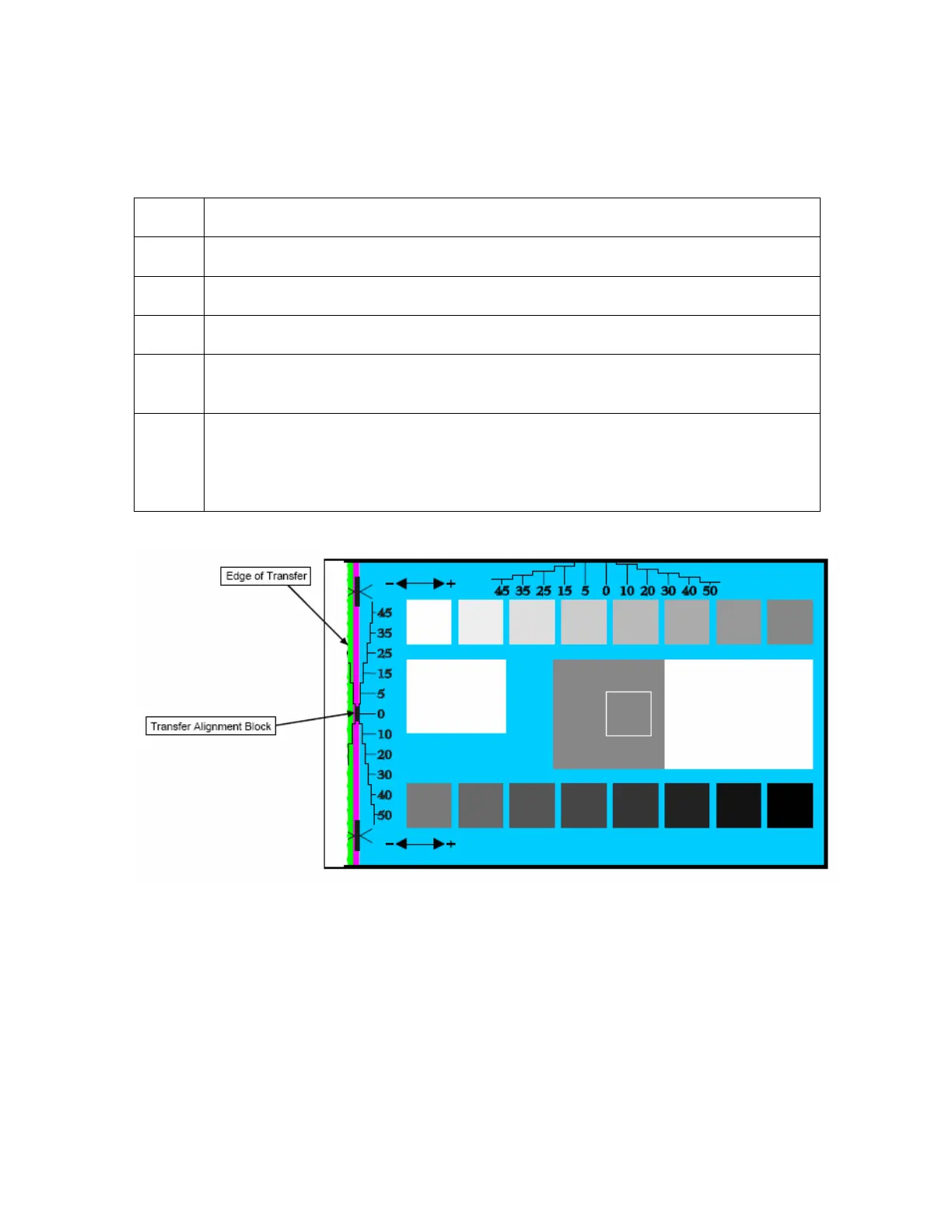

4 Print the alignment card self-test (The front edge should look like Figure
below).
5 Adjust the Print TOF until the green border is eliminated and the entire
Transfer Alignment Block is shown in the center of the card. Note – due to
variation in roller alignment, the green border may appear at a slight angle on
the top of the card.
