Adjusting the Lamination Placement on the Card
The Card Lamination Module provides an adjustable Lamination Placement knob that allows
you to fine-tune where the lamination is being placed on the card.
Step Procedure
1 See Display A (below).
• The Lamination Placement Adjustment Knob is the light gray knob to the
right of the Lamination Cartridges.
• The printer will have one or two film cartridges loaded (depending on
whether this is a Single or Dual-Side Lamination Module).
2 Print a test card to see if the Lamination needs to be adjusted.
• Turn the knob to the right (the negative sign) to move the patch toward the
front edge of the Lamination Module. Turn the knob to the left (the positive
sign) to move the patch toward the back edge of the lamination module.
• Refer to the instruction diagram label located on the open front cover to
make this adjustment. See Display B (below).

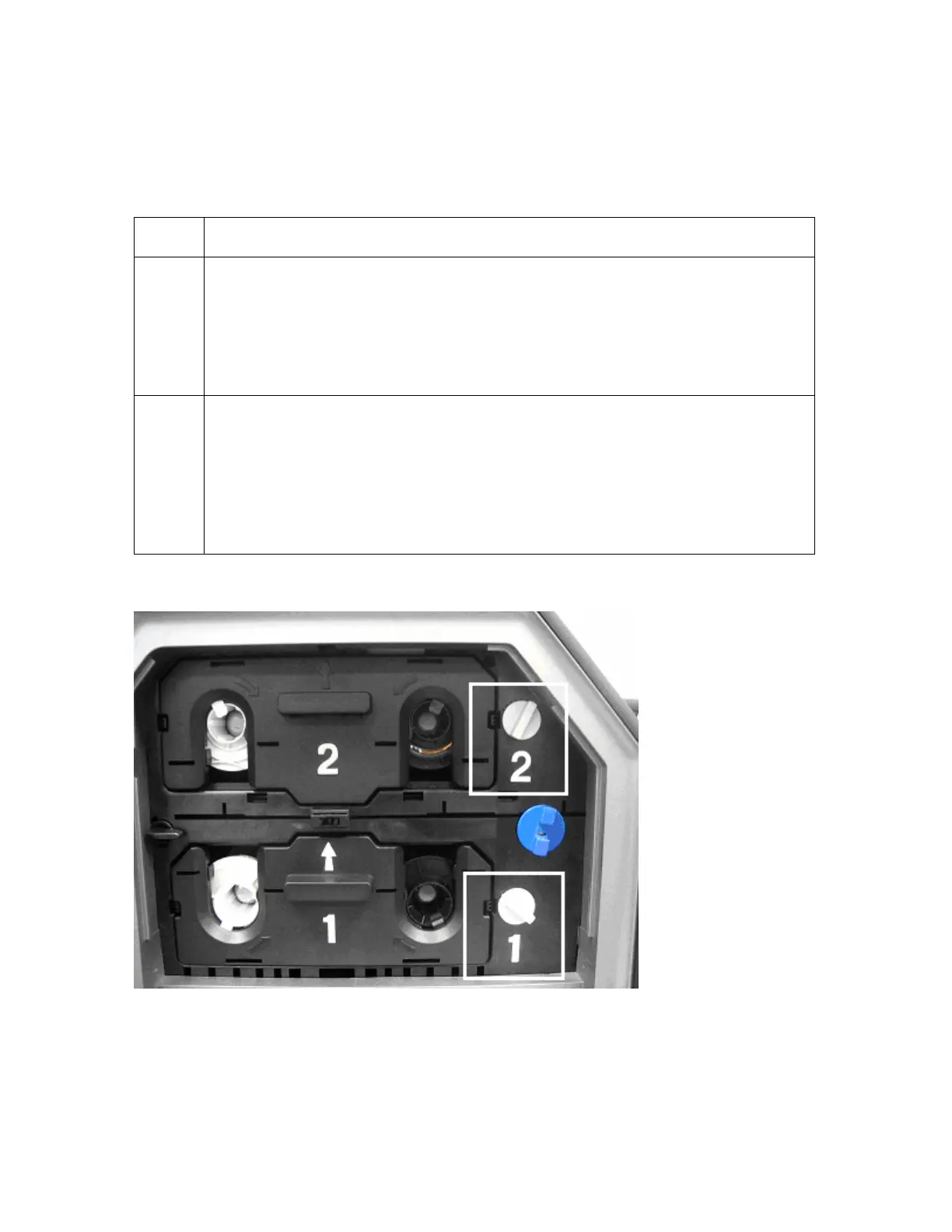

Display A – See Procedural Step 1 (above)
