4.11 Head Section Gas Spring and Damper (CPR Assist)
Chapter 4: Removal, Replacement, and Adjustment Procedures
Affinity® Three Birthing Bed and Affinity® Four Birthing Bed Page 4 - 33
Service Manual (MAN272 REV 4)
4

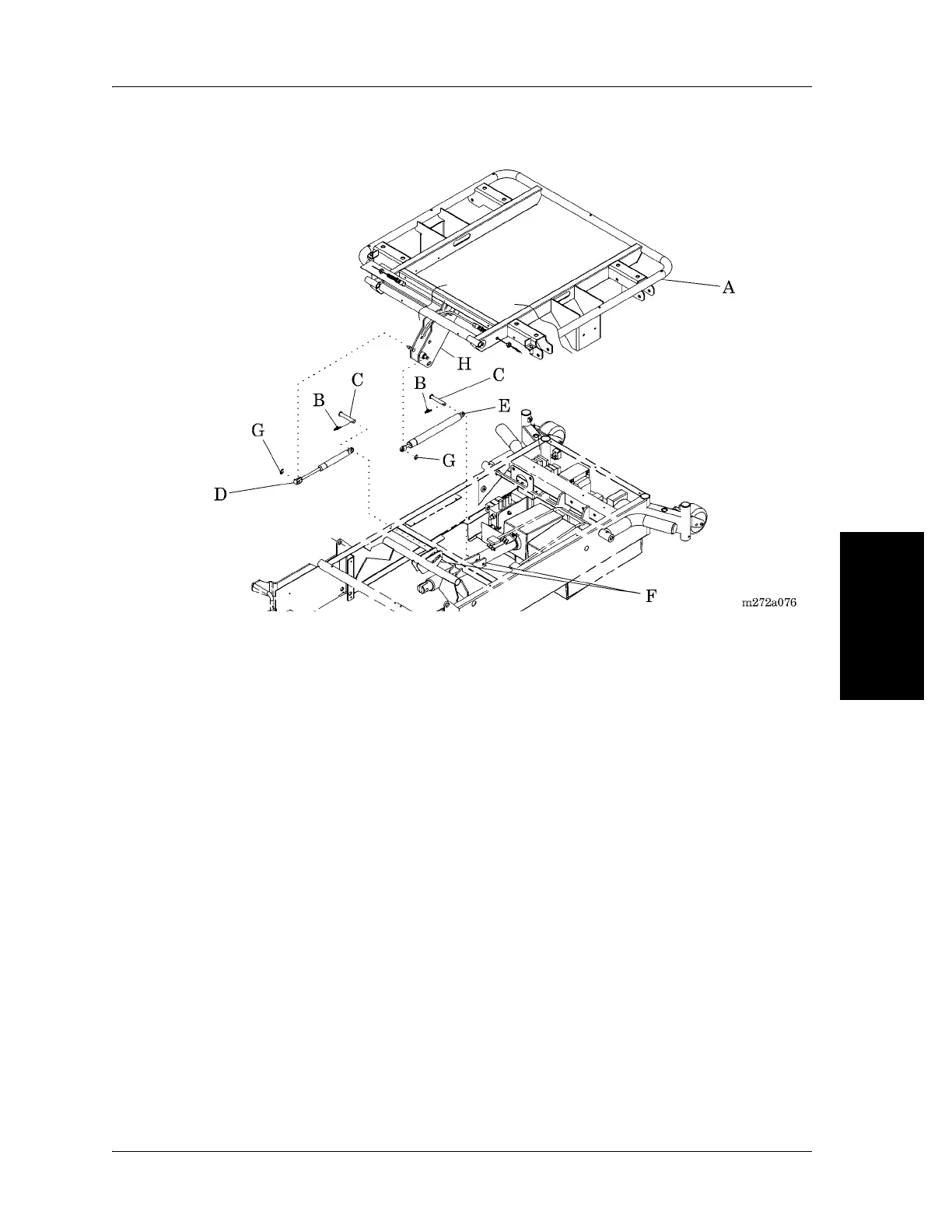

Figure 4-15. Head Section Gas Spring and Damper (CPR Assist)
Replacement
1. To install the replacement head section gas spring (D) and damper (E),
reverse the removal procedure.
2. Do the “Function Checks” on page 2-4.
