4.15 Labor Grips
Tools required: T25 Torx®
1
head bit Ratchet
Lubri-film spray (P/N 36958)
External snap-ring removal tool
Plug insertion tool (P/N 151085)
Removal
1. Set the brake/steer pedal to the brake position.
2. Ensure that the bed is out of the Trend-Like position.
3. Remove the mattress to gain access to the seat panel. Refer to section the
“Mattress Assembly” on page 4-38.
4. Using a ratchet and T25 Torx® head bit, remove the screws (A) that secure
the seat panel (B) to the seat pan (C) (see figure 4-19 on page 4-39).
5. Remove the plug (G).

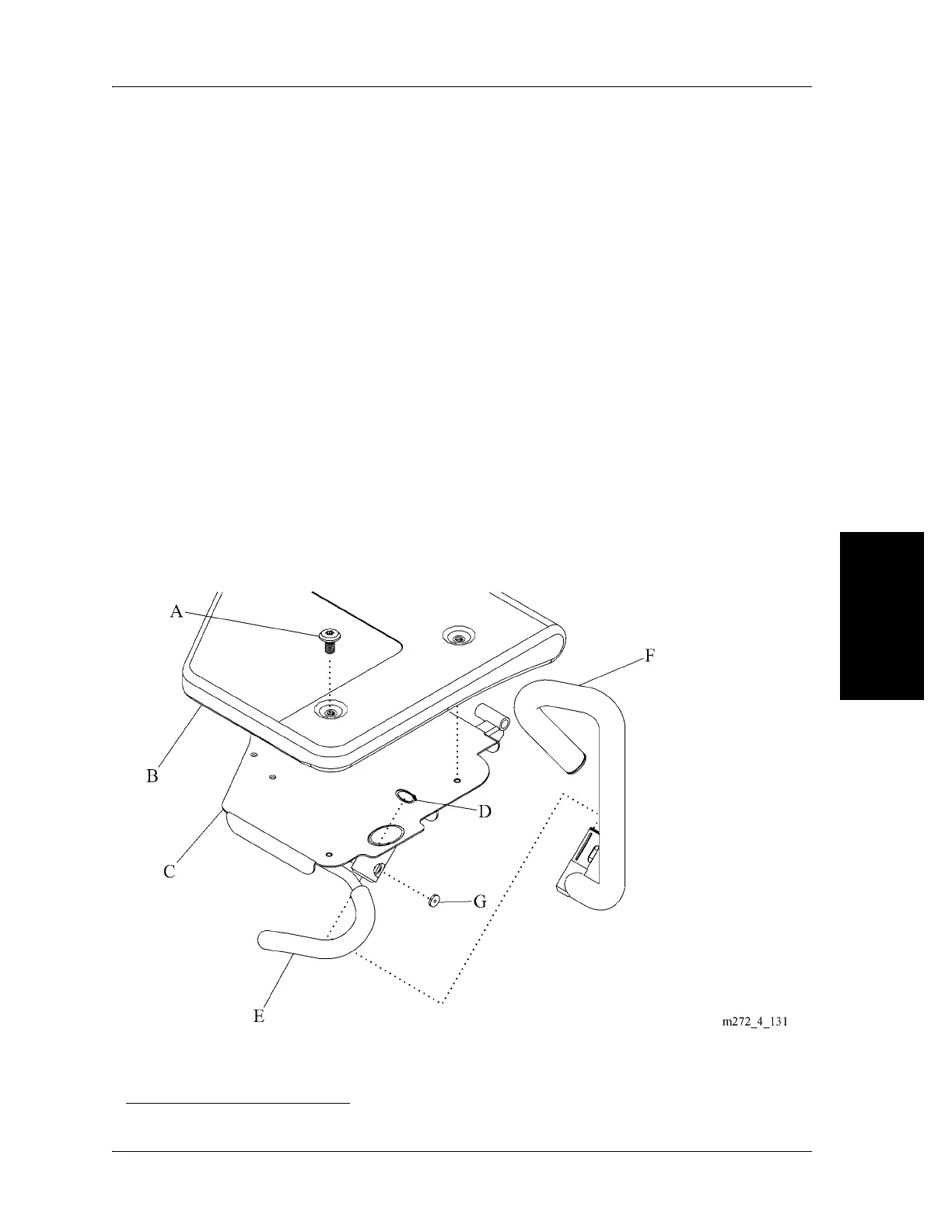

Figure 4-19. Labor Grips
