4.13 Night Light and Cable Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Affinity® Three Birthing Bed and Affinity® Four Birthing Bed Page 4 - 37
Service Manual (MAN272 REV 4)
4
4.13 Night Light and Cable Assembly
Tools required: T25 Torx®
1
head bit Ratchet
Removal
1. Remove the top motor cover (refer to procedure 4.1).
2. Disconnect the night light and cable assembly (A) from logic control
P.C. board connector P1 (see figure 4-18 on page 4-37).

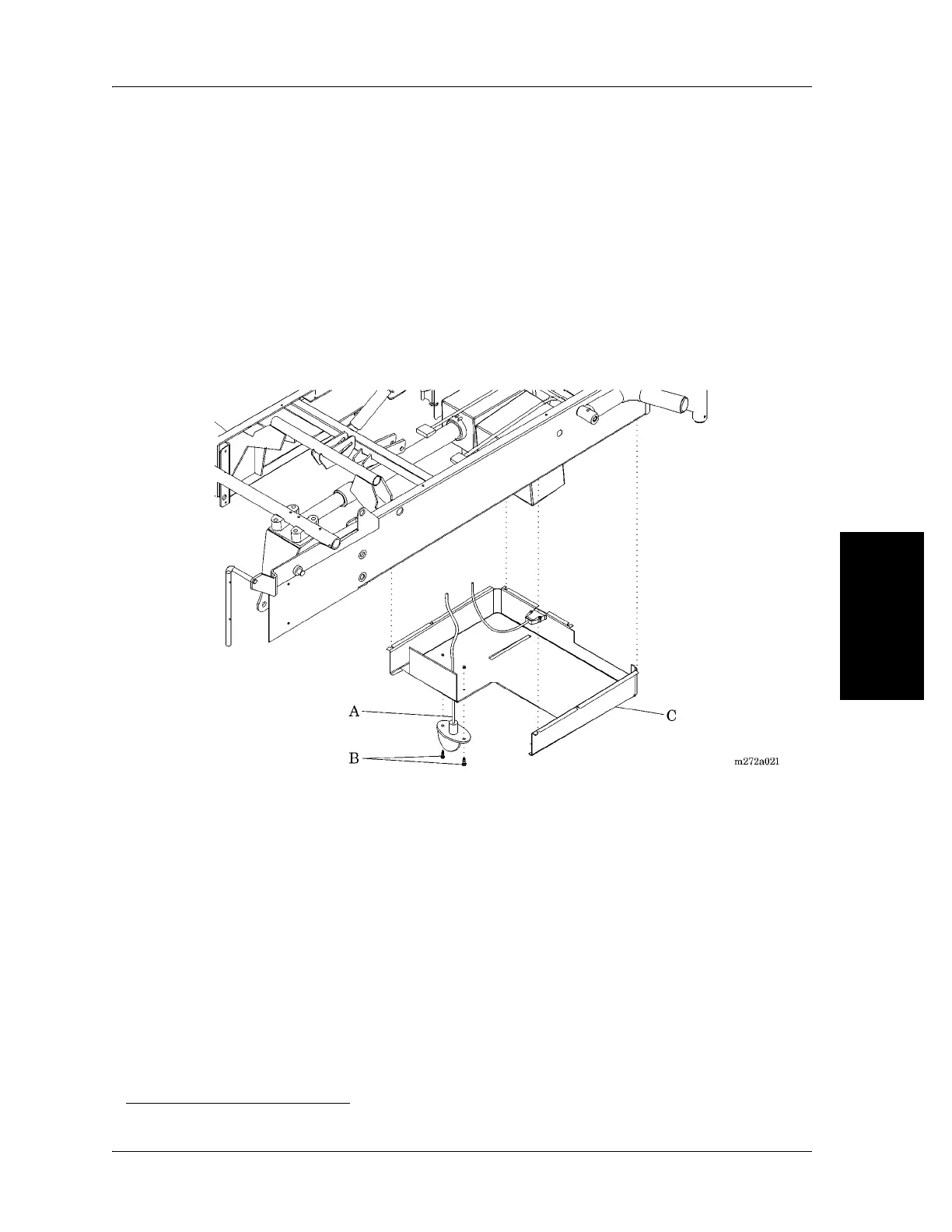

Figure 4-18. Night Light and Cable Assembly
3. Using a ratchet and T25 Torx® head bit, remove the two screws (B) that
secure the night light and cable assembly (A) to the bottom cover (C).
4. Remove the night light and cable assembly (A) from the bed.
Replacement
1. To install the replacement night light and cable assembly (A), reverse the
removal procedure.
2. Do the “Function Checks” on page 2-4.
1. Torx® is a registered trademark of Textron, Inc.
