Electronics Module (Sheet 2 of 3)
Chapter 5: Parts List
Affinity® Three Birthing Bed and Affinity® Four Birthing Bed Page 5 - 27
Service Manual (MAN272 REV 4)
5
Electronics Module (Sheet 2 of 3)

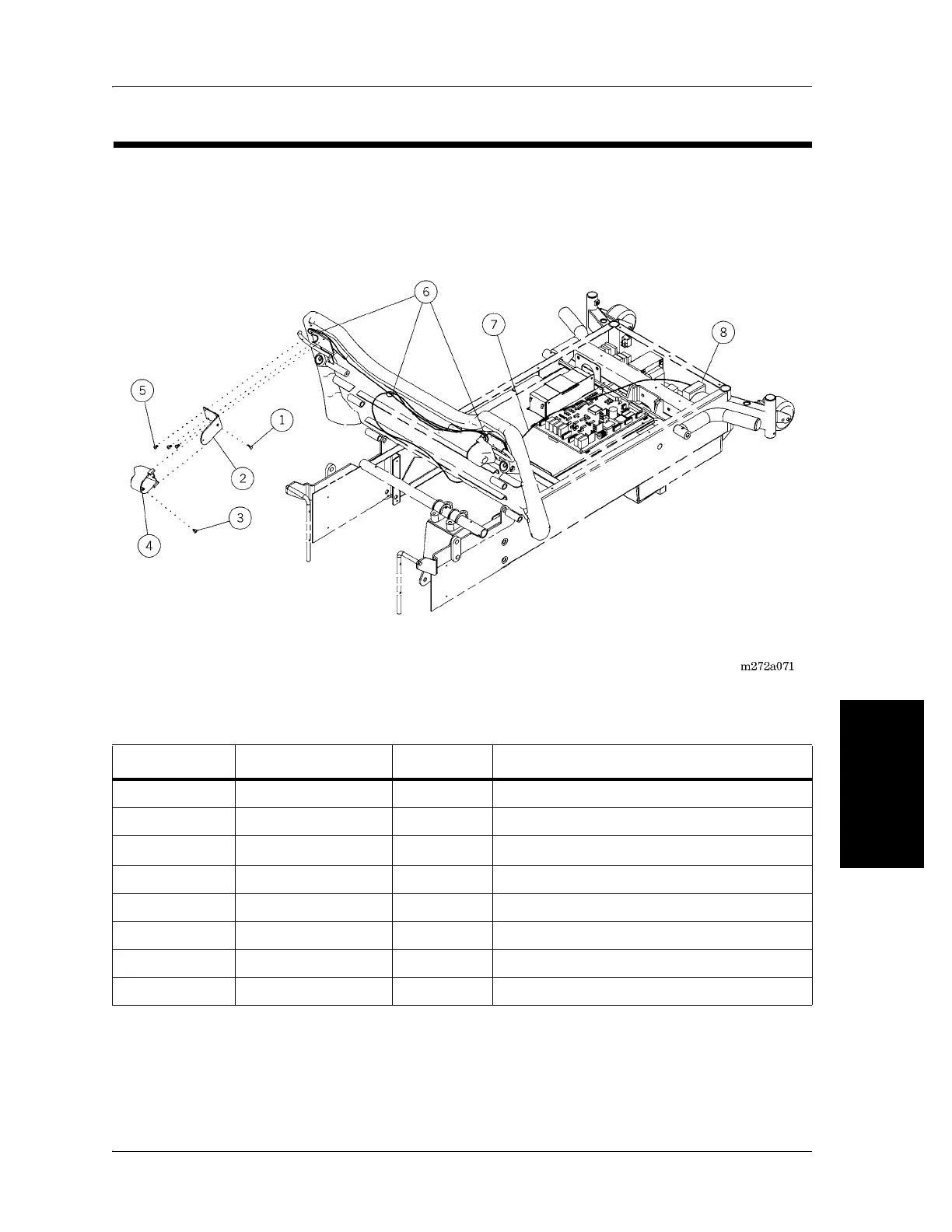

Figure 5-8. Electronics Module (Sheet 2 of 3)
Table 5-8. Electronics Module (Sheet 2 of 3)
Item Number Part Number Quantity Description
1 40421 2 Cable tie mount
2 66053 2 Bracket, DC box mount
3 4214101 2
Screw, pan hd Torx®
a
hi-lo
a. Torx® is a registered trademark of Textron, Inc.
4 Reference only 2 Box, auxiliary outlet
5 43878 6 Screw, button hd Torx®
6 19124 4 Cable tie
7 64009 1 Cable assembly, OB light
8 66278 1 Transformer assembly, OB light option
