4.36 Line Manager
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 92 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)
4.36 Line Manager
Tools required: 7/16" wrench 1/2" wrench
1/2" socket and ratchet
Removal
1. Set the brakes.
2. Raise the head section to 45°.
Failure to unplug the bed could cause injury.
3. Unplug the bed.
4. Do as follows for each side:
a. Remove the nut (A) that attaches the line manager (B) to the bracket
(C) (see figure 4-45 on page 4-92).
b. Remove the two nuts (D) and washers (E) from the bolts (F).
c. Remove the bolts (F) and bracket (C) from the bed frame (G).

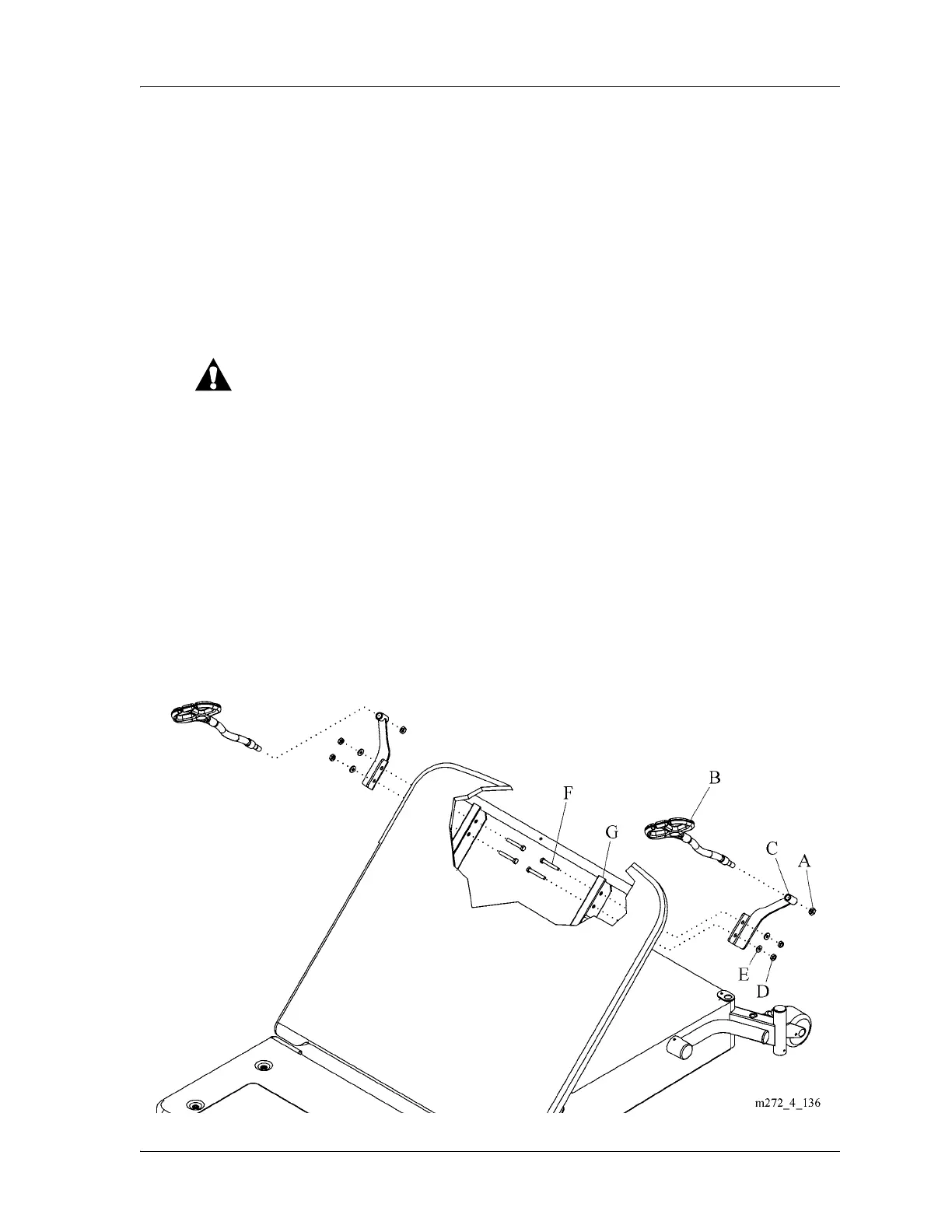

Figure 4-45. Line Manager
