Test Equipment
Chapter 2: Troubleshooting Procedures
Page 2 - 2 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)
Test Equipment
You will need a digital or analog multimeter (VOM) with fine tip probes to
troubleshoot the bed.
Refer to your VOM owner’s manual for complete and detailed
information regarding the operation of your VOM. Failure to do so could
result in personal injury or equipment damage.

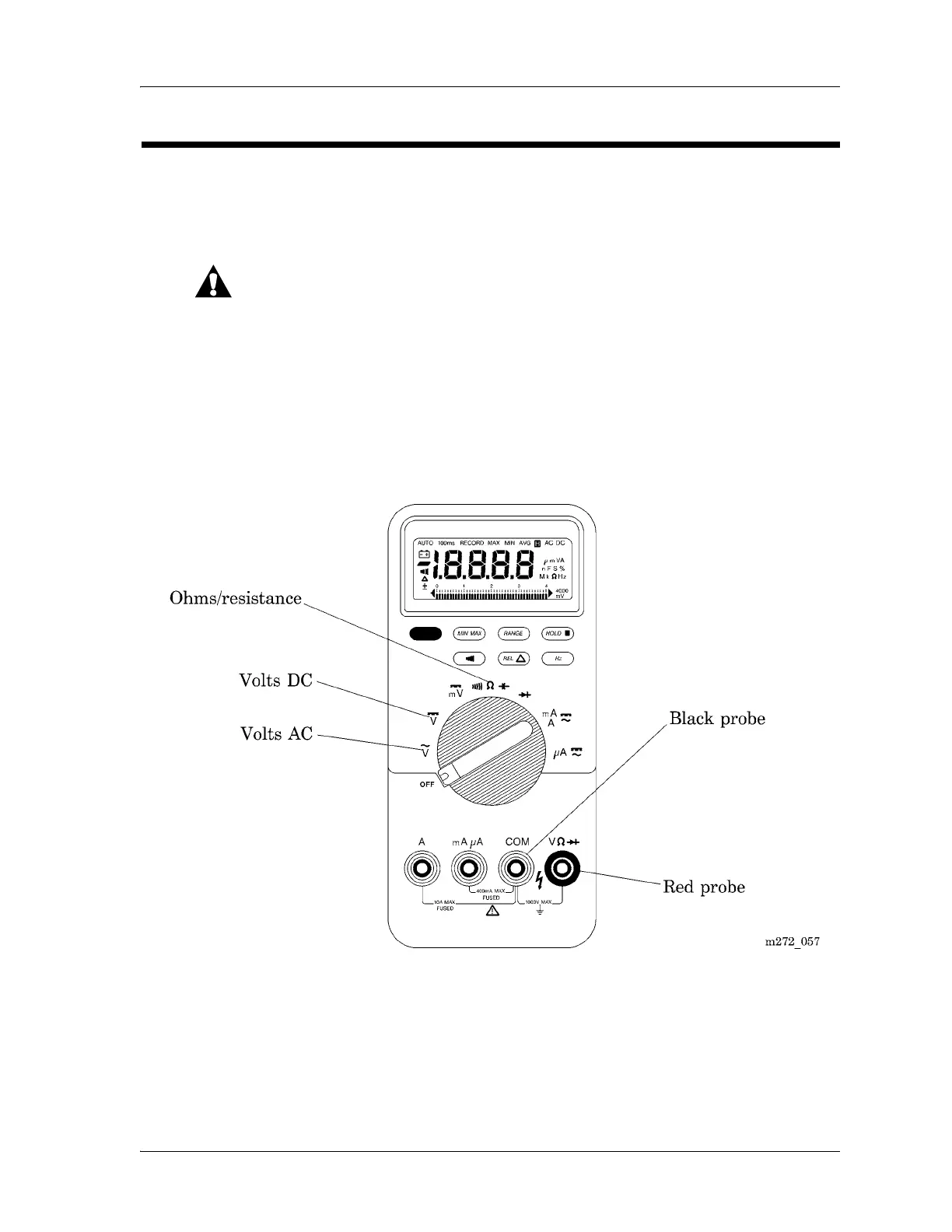

Figure 2-1 on page 2-2 represents a common digital VOM. The three basic
electrical functions that you will test are alternating current (AC), direct
current (DC), and ohms/resistance.
Figure 2-1. VOM
Figure 2-1 on page 2-2 displays the correct connection for the fine tip probes.
The red probe plugs into the port marked “V ” The black probe plugs into
the port marked “COM.” The troubleshooting repair analysis procedure (RAP)
indicates where on the bed to connect the red probe and black probe.
