Hill-Rom Affinity Three - Push Handles

4.37 Push Handles
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 94 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)
4.37 Push Handles
Tools required: 7/16" wrench T25 Torx® screwdriver
Removal
1. Set the brakes.
WARNING:
Failure to unplug the bed could cause injury.
2. Unplug the bed.
3. Remove the nut (A) from the bolt (B) (see figure 4-46 on page 4-94).
4. Remove the bolt (B) that attaches the handle (C) to the bed (D).
5. Remove the handle (C).

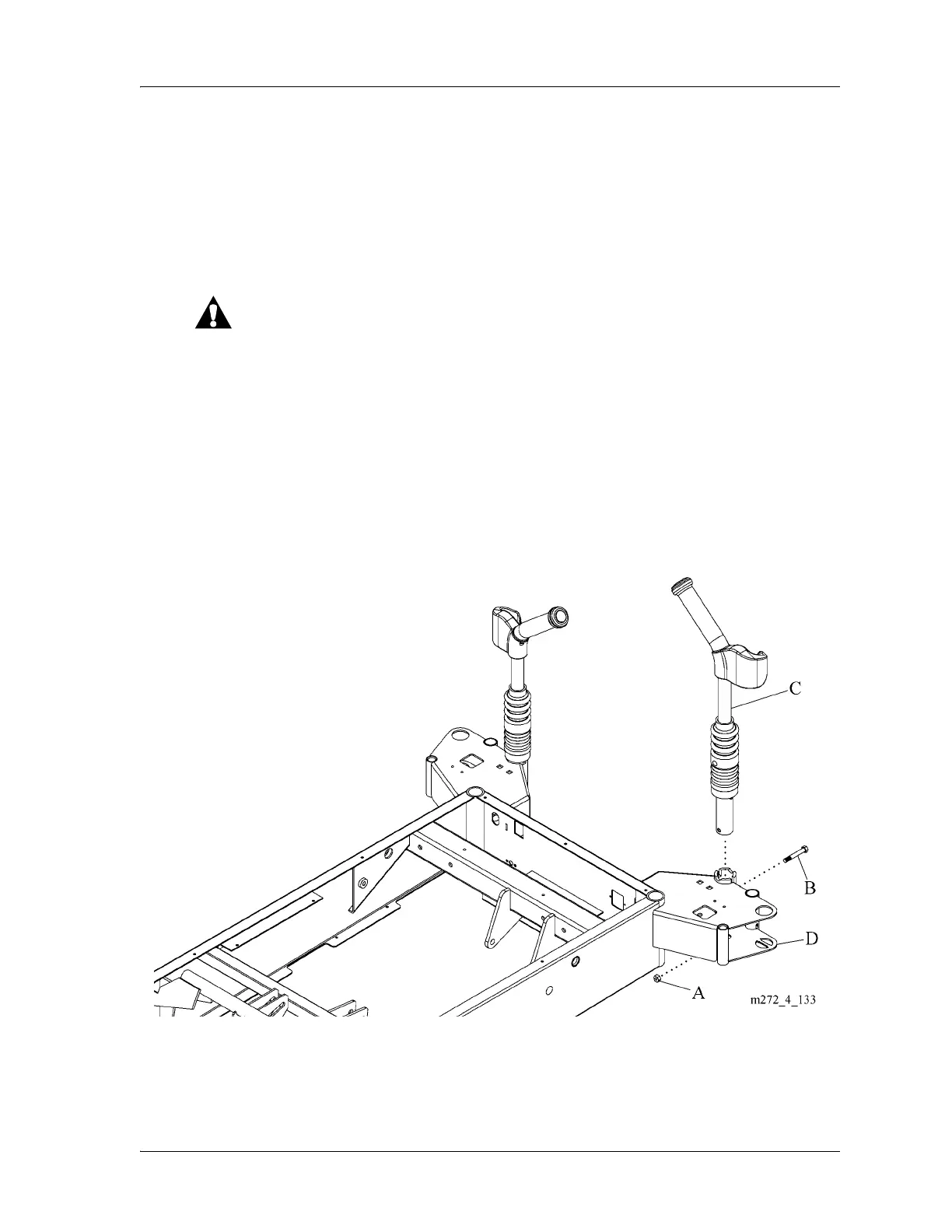

Figure 4-46. Push Handle
Replacement
Do the removal procedure in reverse order.
