Hill-Rom Affinity Three - Telescoping Calf Supports (P35745 A) or Telescoping Full Leg Supports (P7634 C)

7.3 Telescoping Calf Supports (P35745A) or Telescoping Full Leg Supports (P7634C)
Chapter 7: Accessories
Page 7 - 6 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)
7.3 Telescoping Calf Supports (P35745A) or Telescoping Full Leg
Supports (P7634C)
Tools required: None
Installation
1. Set the brake/steer pedal to the brake position.
2. Ensure that the bed is out of the Trend-Like position.
3. Using the foot function, position the foot section in a mid-height position.
4. Position and insert the telescoping supports (A) into the mounting post (B)
(see figure 7-2 on page 7-6).

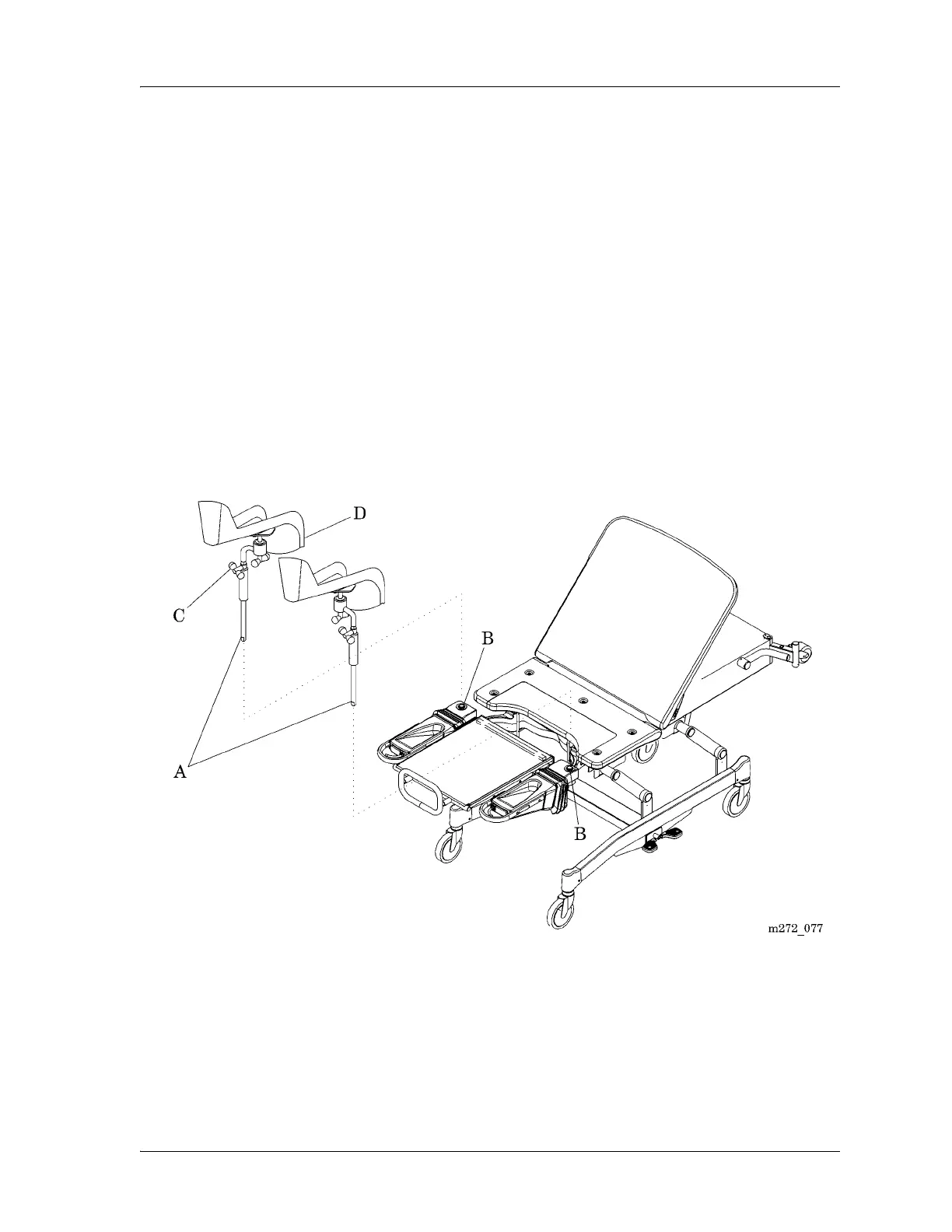

Figure 7-2. Telescoping Calf or Full Leg Supports
5. Ensure that the telescoping supports (A) are fully seated and indexed in the
appropriate position.
NOTE:
The ball joints can be indexed inward or outward for different sized patients.
