4.15 Labor Grips
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 40 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)
6. Using the external snap-ring removal tool, remove the external snap ring
(D) from the pull handle.
7. Pull and hold the release (E) for the labor grip handle (F).
8. Slide the labor grip handle (F) from its socket.
Replacement
1. To install the new labor grip handle (F), reverse the removal procedure.
2. Apply lubri-film spray (P/N 36958) to the arm of the labor grip that slides
into the socket.
3. Install the plug (see figure 4-20 on page 4-40).
4. Do the “Function Checks” on page 2-4.

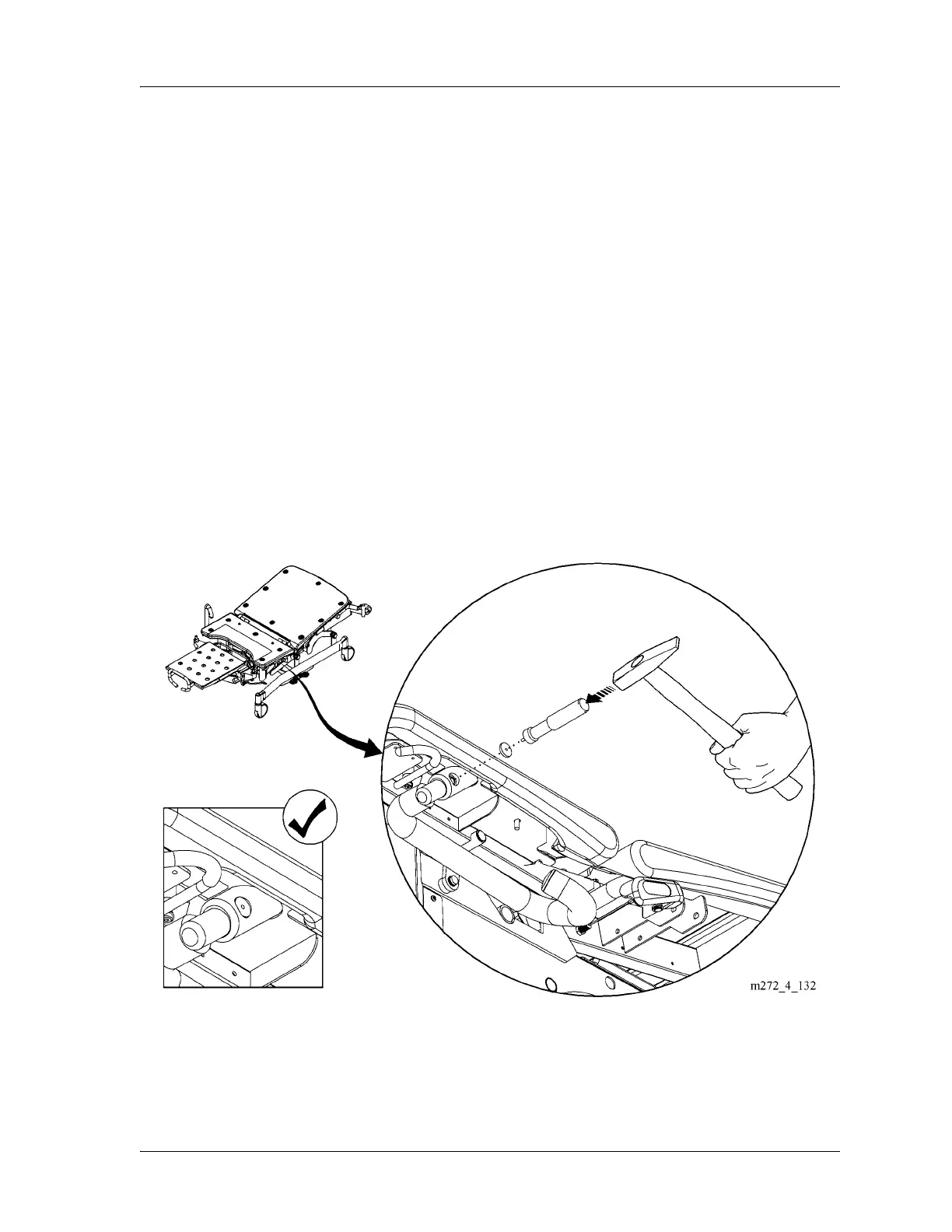

Figure 4-20. Labor Grip Plug Installation
