4.22 Air System Control P.C. Board Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 56 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)

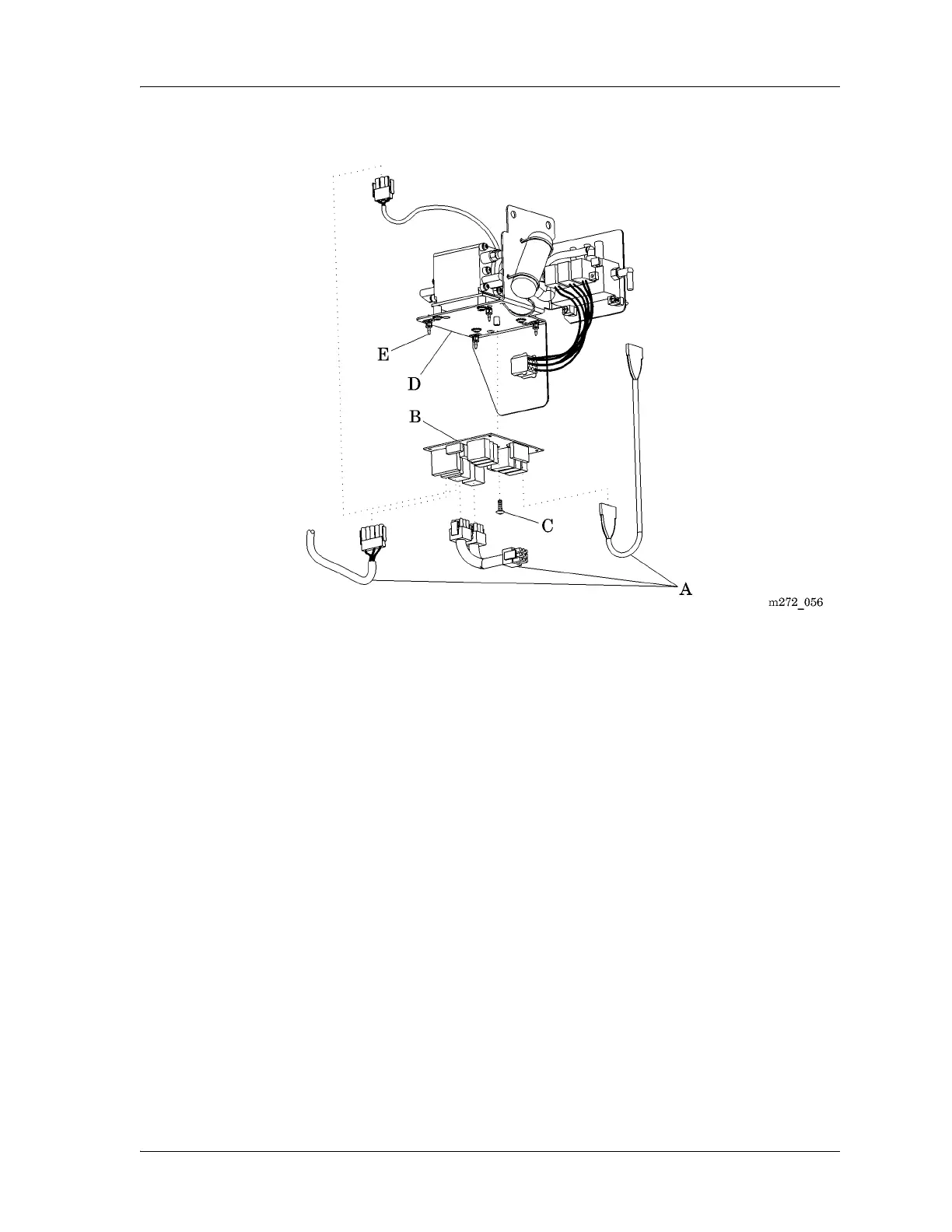

Figure 4-29. Air System Control P.C. Board
Replacement
1. To install the replacement air system control P.C. board (B), reverse the
removal procedures.
2. Ensure that the wiring connectors are firmly connected to the air system
control P.C. board receptacles.
3. Do the “Function Checks” on page 2-4.
