4.24 Transformer Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 62 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)

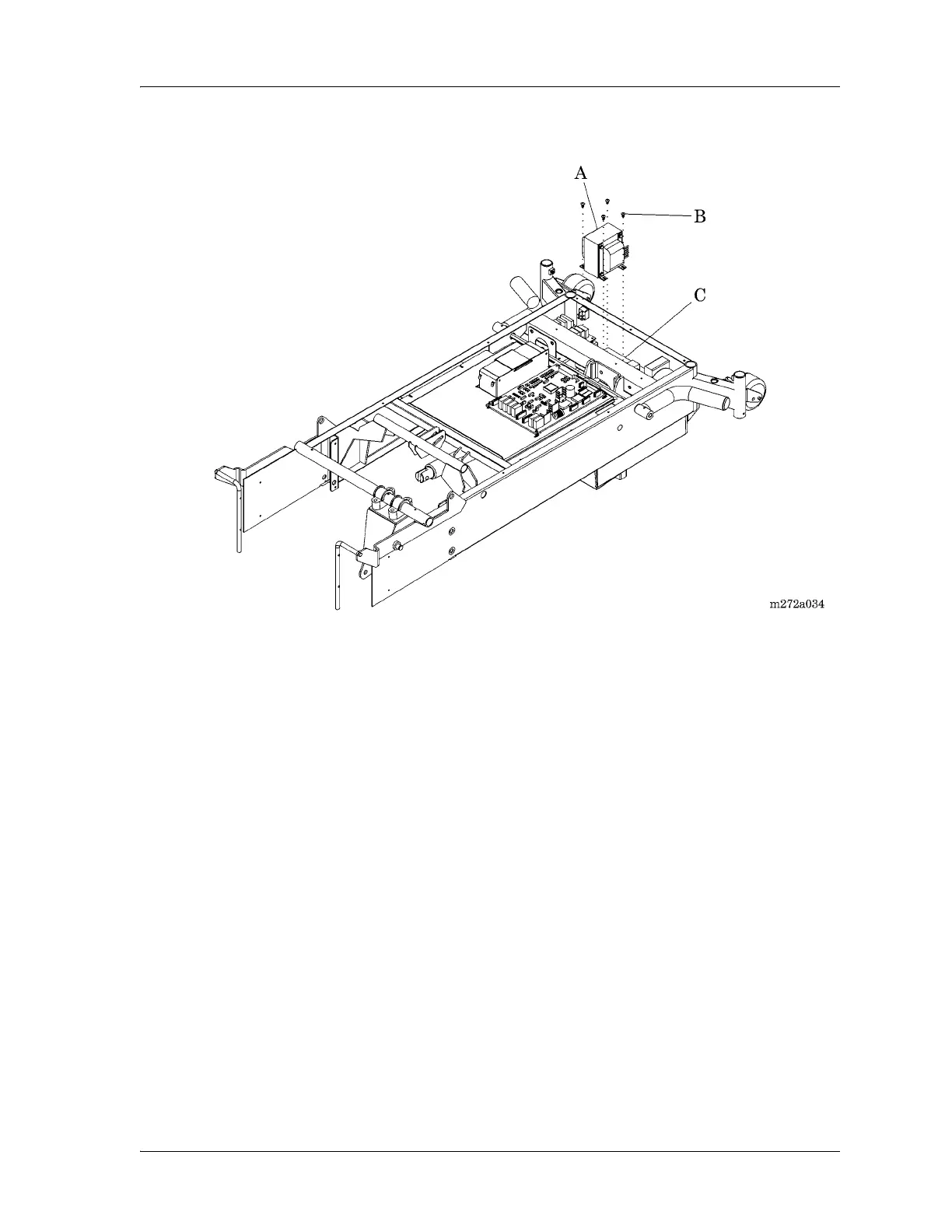

Figure 4-33. Transformer Assembly
Replacement
1. To install the replacement transformer assembly (A), reverse the removal
procedures.
2. Ensure that the wiring connectors are firmly connected to the transformer
assembly (A).
3. Do the “Function Checks” on page 2-4.
