4.27 Siderail Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 68 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)

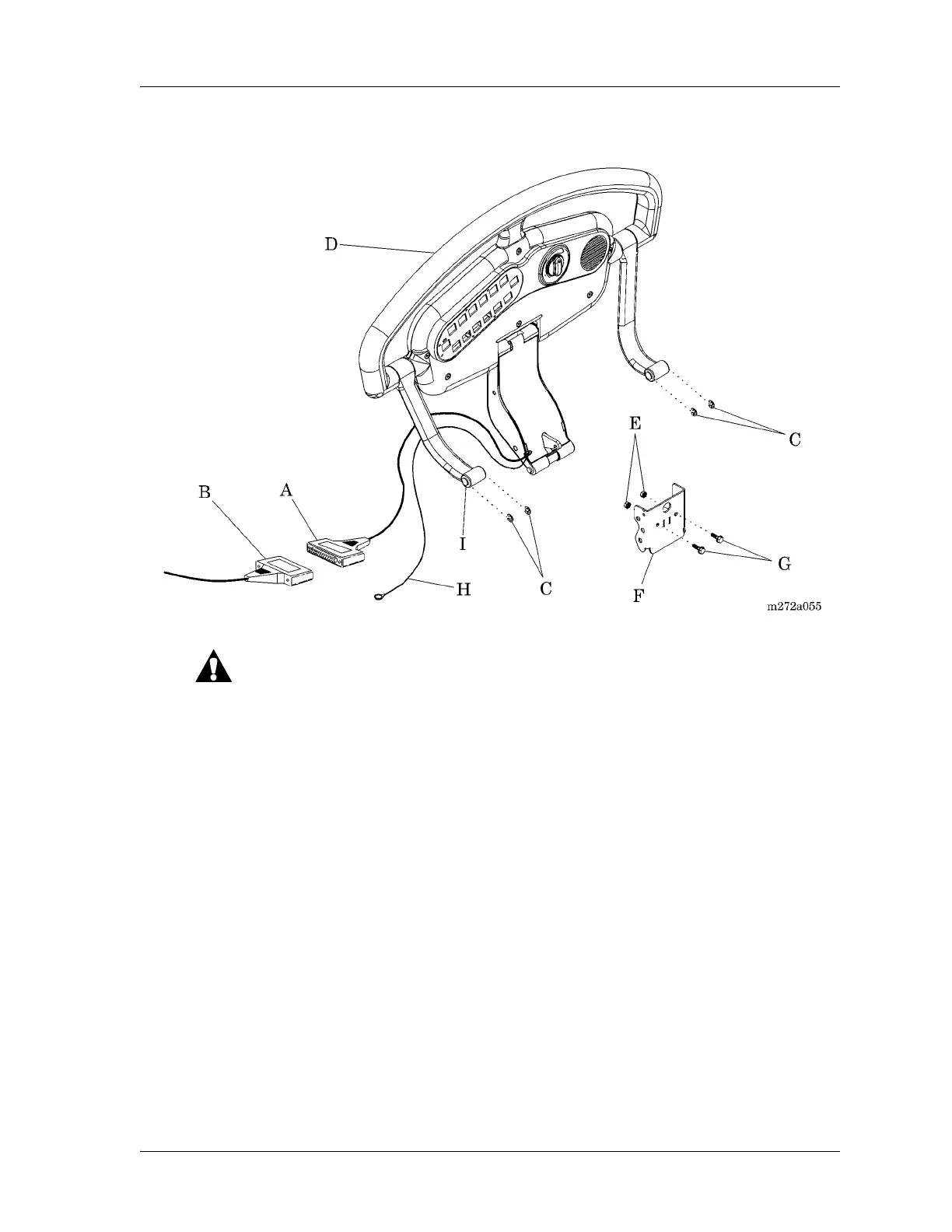

Figure 4-36. Siderail Assembly
Ensure that the siderail does not drop when the pins are removed.
Failure to do so could result in damage to the wiring going to the
siderail.
9. Remove the pins (I) from the siderail assembly (D).
10. Set the siderail in a place where it will not be damaged.
Replacement
1. To install the replacement siderail assembly (D), reverse the removal
procedure.
2. Do the “Function Checks” on page 2-4.
