4.29 Caregiver Siderail (Outboard) P.C. Switch Board
Chapter 4: Removal, Replacement, and Adjustment Procedures
Page 4 - 72 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)

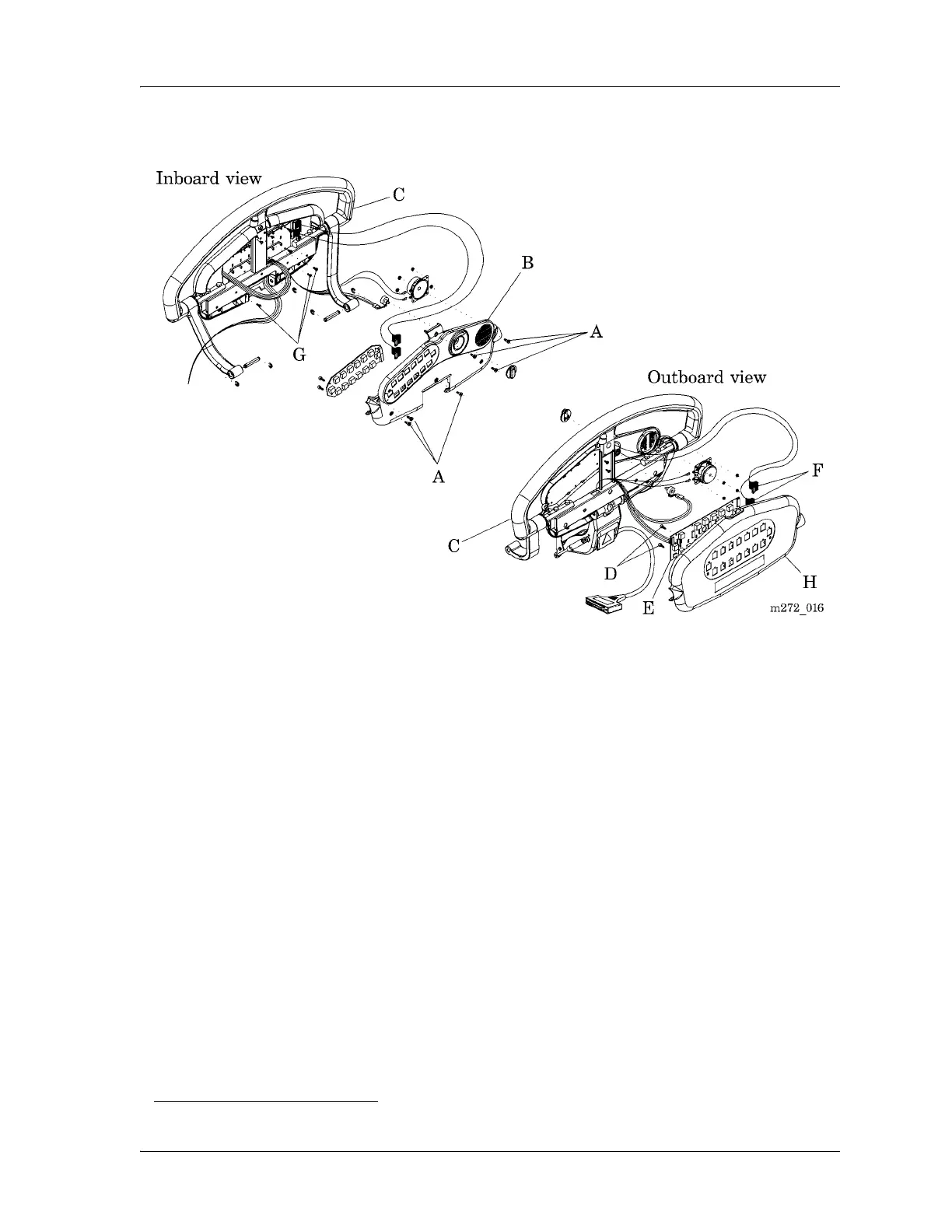

Figure 4-38. Caregiver Siderail (Outboard) P.C. Switch Board
11. Note the orientation of the wires and cable assemblies to ensure proper
installation during the replacement procedure.
12. Using the ratchet and T10 Torx®
1
head bit, remove the four screws (D) that
secure the P.C. switch board (E) to the caregiver siderail cover (H).
13. Slide the P.C. switch board (E) off the caregiver siderail cover (H) tabs, and
remove it from the caregiver siderail cover (H).
14. Disconnect the two SideCom® Communication System cable assemblies
(F) from the P.C. switch board (E).
Replacement
1. To install the replacement P.C. switch board (E), reverse the removal
procedures.
2. Do the “Function Checks” on page 2-4.
1. Torx® is a registered trademark of Textron, Inc.
