4.32 Caster Assembly
Chapter 4: Removal, Replacement, and Adjustment Procedures
Affinity® Three Birthing Bed and Affinity® Four Birthing Bed Page 4 - 81
Service Manual (MAN272 REV 4)
4

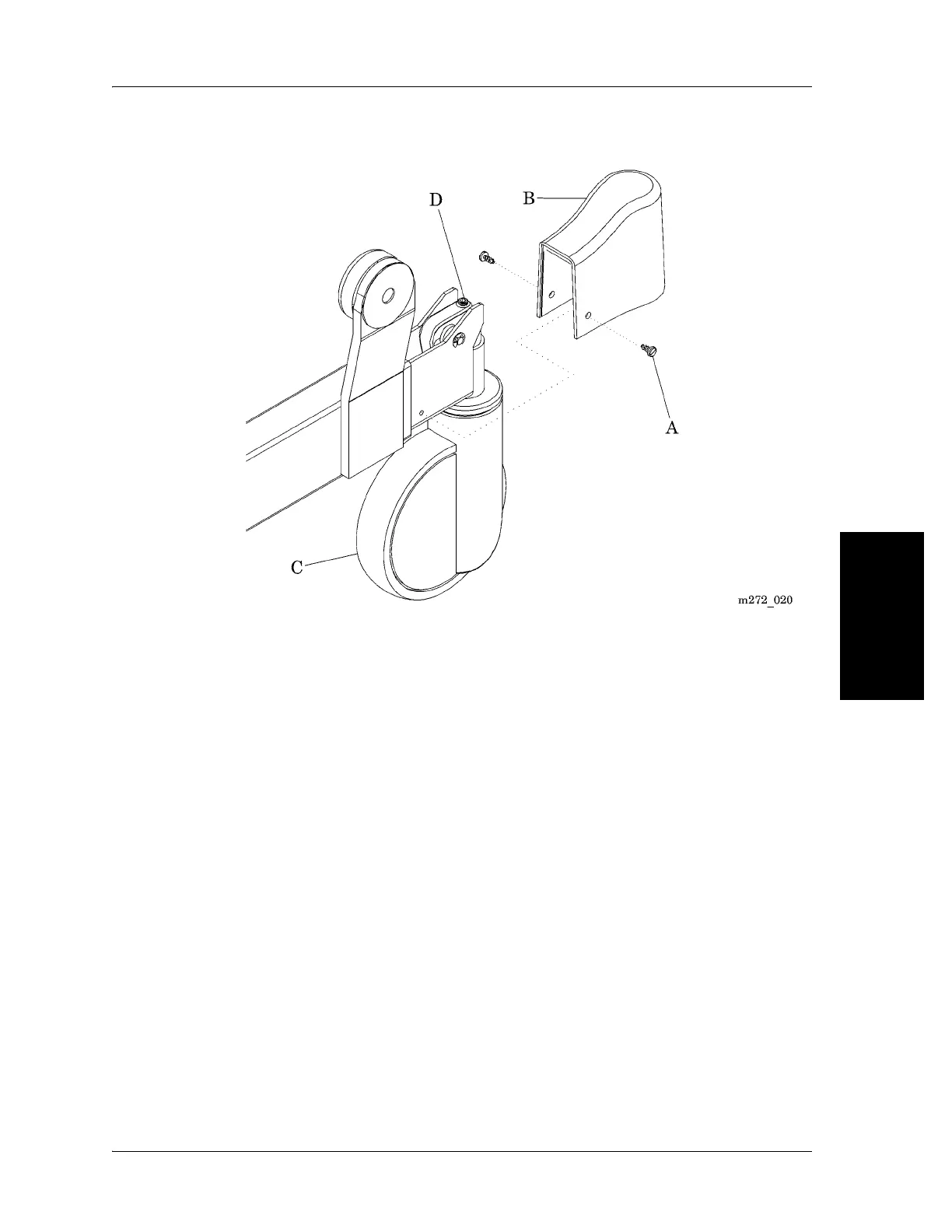

Figure 4-41. Caster Assembly
Replacement
1. To install the replacement caster (C), reverse the removal procedure.
The new brake/steer caster could have 2 or 4 bolt holes in the stem. If the stem
has a green dot on it, the green dot faces the head-end of the bed during
installation.
2. Ensure that the caster (C) rolls and swivels freely, and that all brake and
steer functions work properly.
The brake/steer casters with the green dot will lock in the trailing position only.
Brake and Steer Caster Adjustment
1. Set the brake/steer pedal to place the system in neutral.
2. Perform step 1 through step 3 in “Removal” on page 4-80.
