Preventive Maintenance
Chapter 6: General Procedures
Page 6 - 8 Affinity® Three Birthing Bed and Affinity® Four Birthing Bed
Service Manual (MAN272 REV 4)

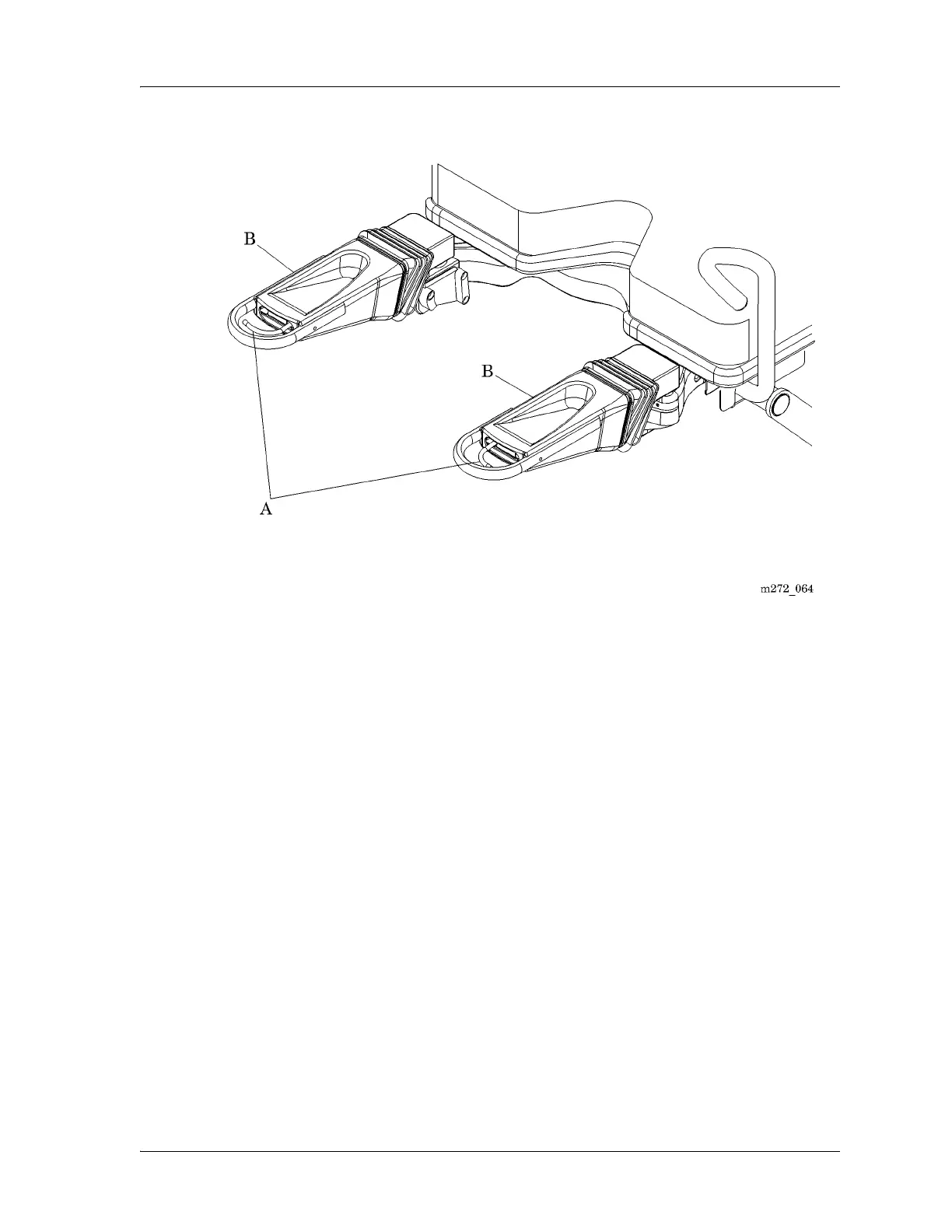

Figure 6-2. Foot Support Assembly
6. Pull the release latch (A) to swing the foot support (B) outward.
7. To make sure the release latch (A) operated correctly, release the latch two
to three times during the outward motion.
8. Return the foot support (B) to its original position.
9. Remove the foot support (B) from the foot yoke (refer to procedure 4.12).
The removal should be smooth and easy.
10. Examine the foot support (B) for any missing, loose, misplaced and wrong
parts.
11. Examine the finish on the surfaces of the foot support (B).
12. make sure the plastic foot pad sits flush and centered with the foot rest
casting, and that you do not see any gaps.
13. Make sure all foot support (B) functions operate correctly after you
complete the inspection.
