2.2 Connecting the Measurement Lines
32
2
2

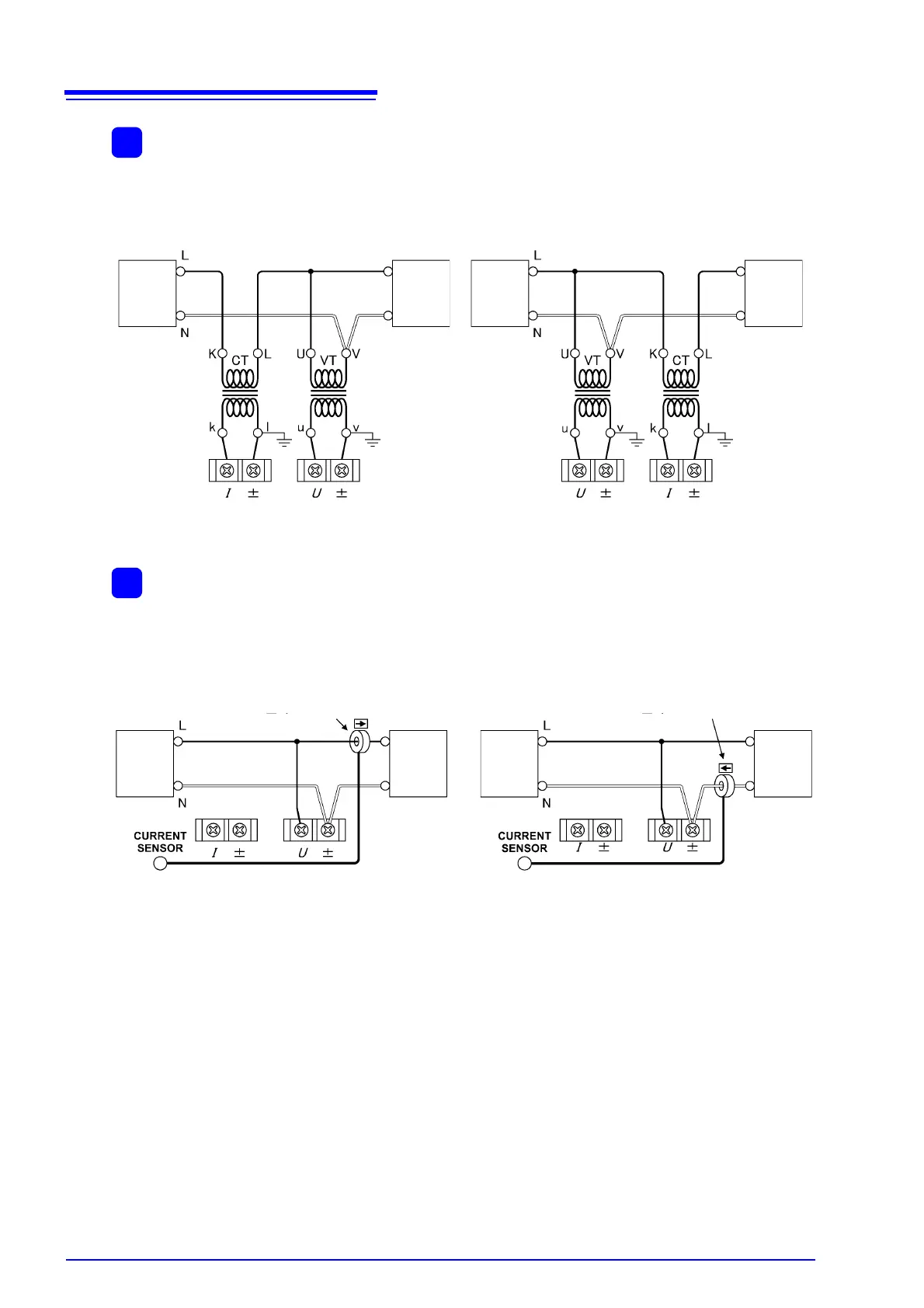

When measuring measurement lines that exceed the maximum input voltage
(1000 V) or maximum input current (30 A)
Connect the instrument using a VT (PT) and CT.
Source Load Source Load
2
3
When measuring measurement lines that exceed the maximum input current
(30 A)
Connect the instrument using a optional current sensor.
(PW3335-03 or PW3335-04 only)
Source Load Source Load
Current sensor Current sensor
