3.2 Configuring Settings
57
• Averaging will restart when there is a change that affects measured values, for example in the range,
number of averaging iterations, current input method, VT ratio, or CT ratio.
Since no average value exists immediately after the start of averaging, the invalid data display [- - - - -] will
be shown. During this period of time, the AVG lamp will flash.
• If the instantaneous value changes to [o.r] while average values are being displayed, the display will
change to [o.r].
• The unit may flash during measurement.
See: "3.10.4 When the Unit Indicator Flashes" (p.114)
• Averaging processing is performed for voltage, current, active power, apparent power, and reactive power.
• The power factor and phase angle are calculated from the averaged active power and apparent power.
5 Press to exit the settings.
The instrument will return to the normal display (Mea-
surement screen).

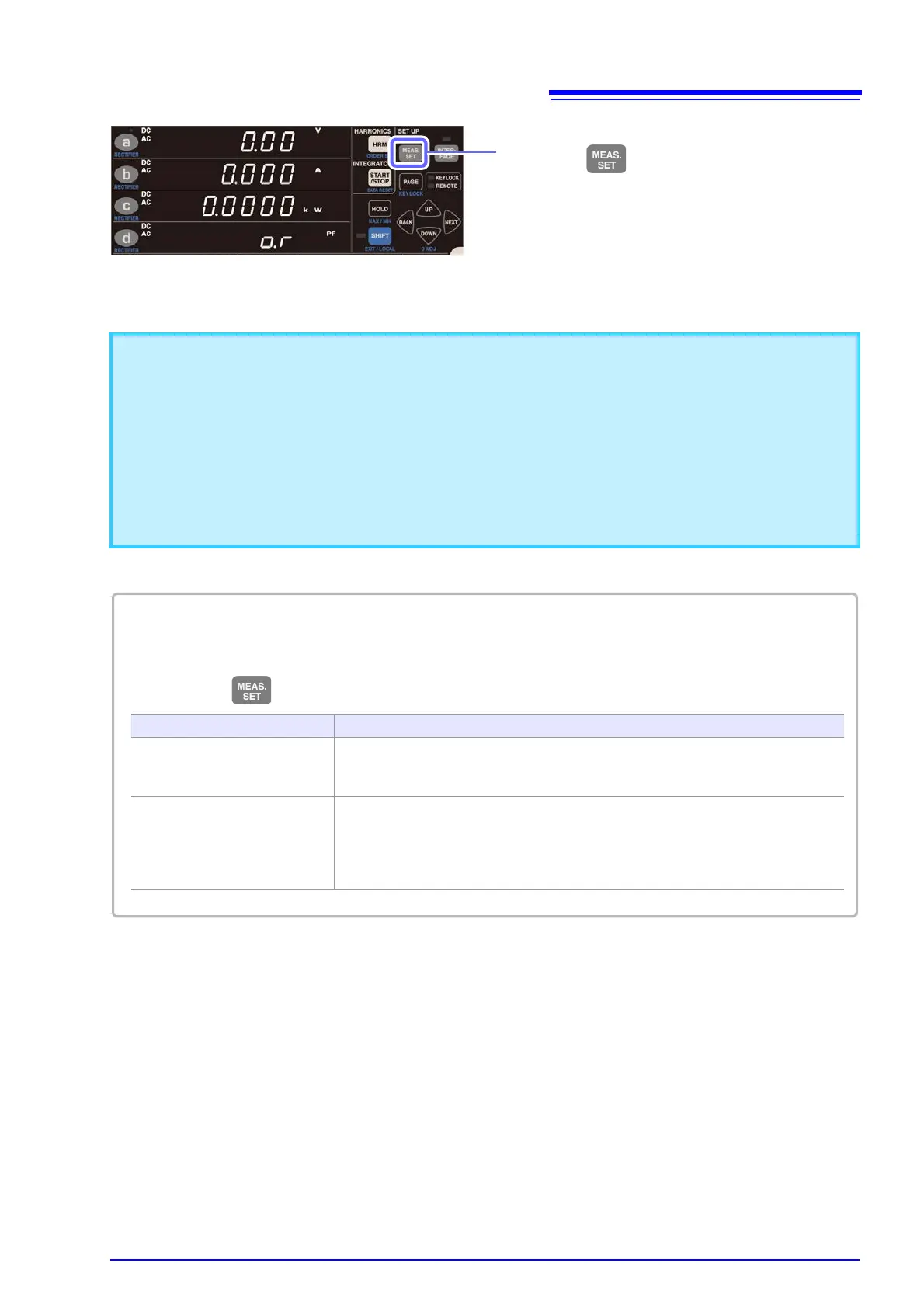

This indicates that the number of averaging iterations cannot be changed.
After pressing to exit the setting, perform the following procedure:
Status Solution and reference for more information
During integration operation
(
RUN lamp lit up or flashing)
Averaging cannot be changed until the integrated value is reset (so that the RUN
lamp turns off).
See: "Canceling integration (resetting integrated values) (DATA RESET)" (p.65)
During display hold operation or
maximum value/minimum value
hold operation (
HOLD, MIN,
or MAX
lamp lit up)
Averaging cannot be changed until this operation is canceled (so that the
HOLD
lamp turns off).
See: "Canceling the display hold state" (p.106)
"Switching the display among the maximum, minimum, and instantaneous
values" (p.107)
If the number of average iterations does not flash
To Next Page
