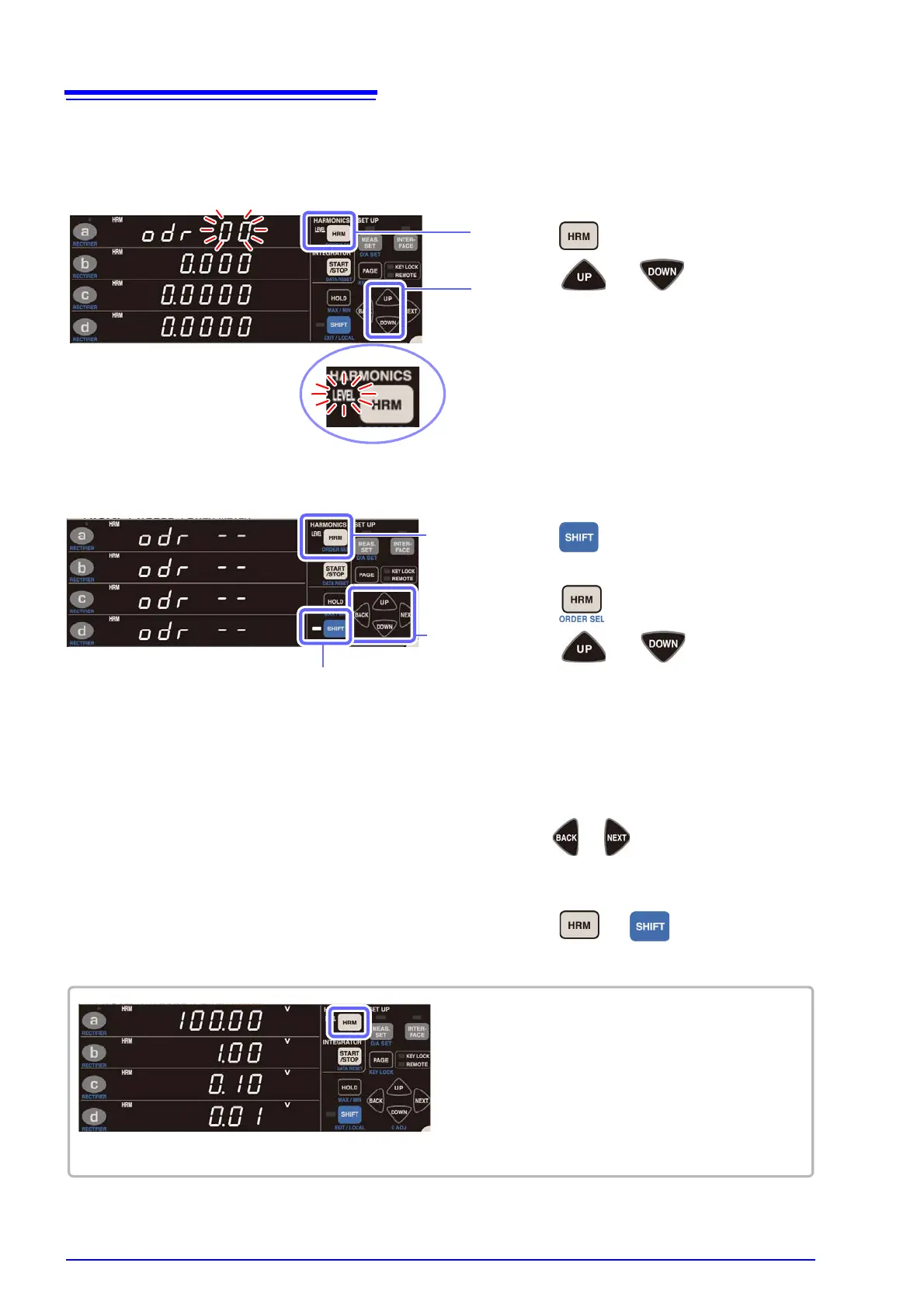

3.4 Viewing Harmonic Measured Values
72
The following two harmonic display methods are available:
Displaying components for the same order as the display parameter (default state)
Allocating components for different orders to areas a, b, c, and d on the display
(ORDER SEL)
Example: If [odr 1] or similar is shown in area a on the display while displaying harmonics
1 Press to light up LEVEL lamp.
2 Press or to change the
order for display area
a.
The component for the order specified for display
area
a will be shown for areas b, c, and d on the
display.
Settings:
0 to 50
1 Press to place the instrument in
the shift state.
2 Press .
3 Press or to change the
order.
If all display areas indicate [- -], the “display
the same order component” setting will be
used.
Settings: 0 to 50 - - 0 to 50
To move areas a, b, c, or d on the dis-
play:
Press or to select the display area
you wish to set so that it flashes and then set
as desired.
4 Press or to exit the Order
Setting screen.
3
2,4
1,4
By allocating different orders to areas a
through d on the display and then setting
all the areas to the same measurement
parameter, you can observe changes in
each order.
