Hitachi ZAXIS 120-6 class

To Next Page

To Previous Page

1-60

OPERATOR'S STATION

MDAA-01-161EN

MDAA-01-162EN

MDAA-01-163EN

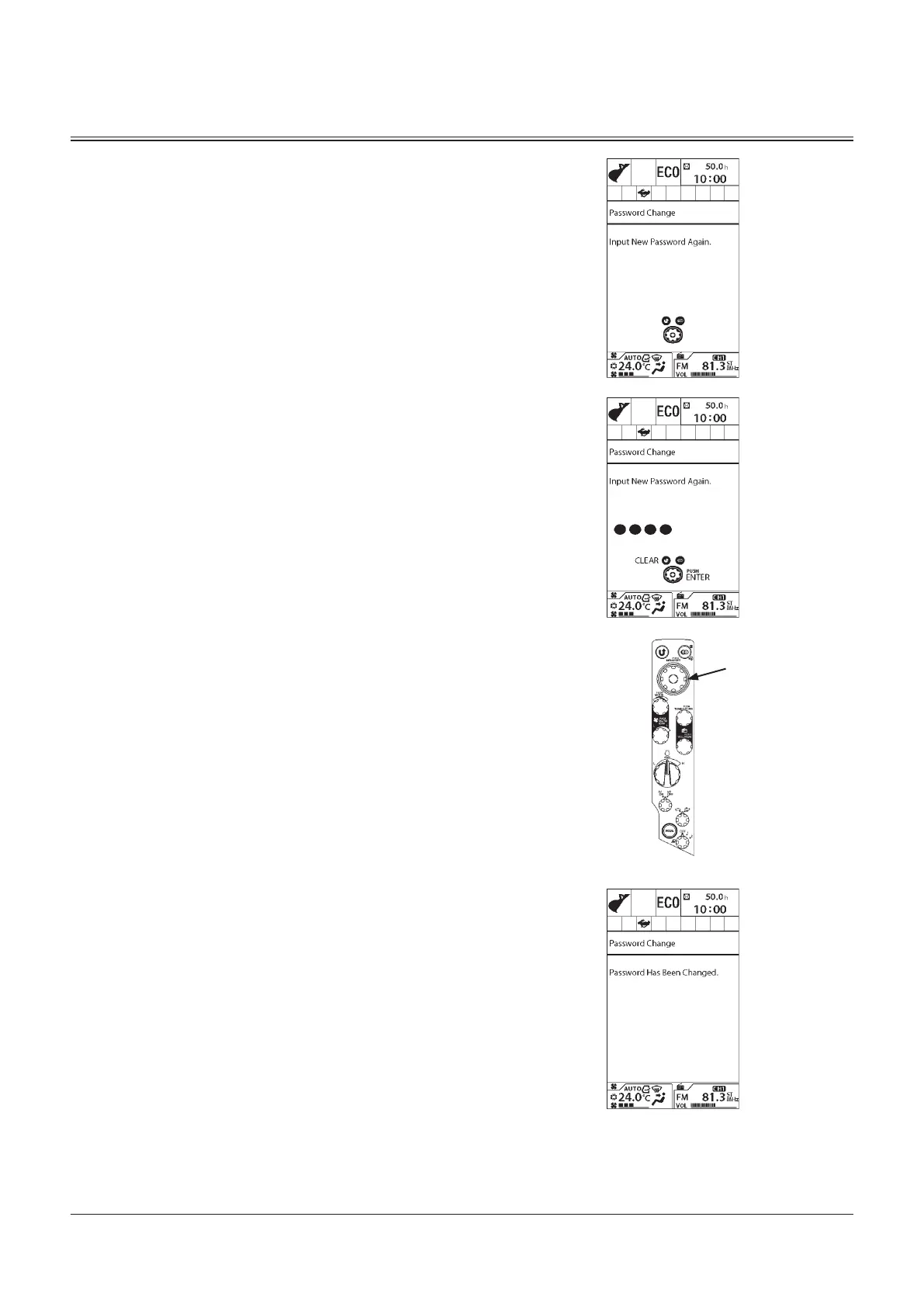

8. Input the new password again to confirm it and push

selector knob (2).

9. The password has been changed.
