7-160
MAINTENANCE
5
4
6
32
1
MDC1-07-031
MDC1-07-032
MDC1-07-033
MDC1-07-030

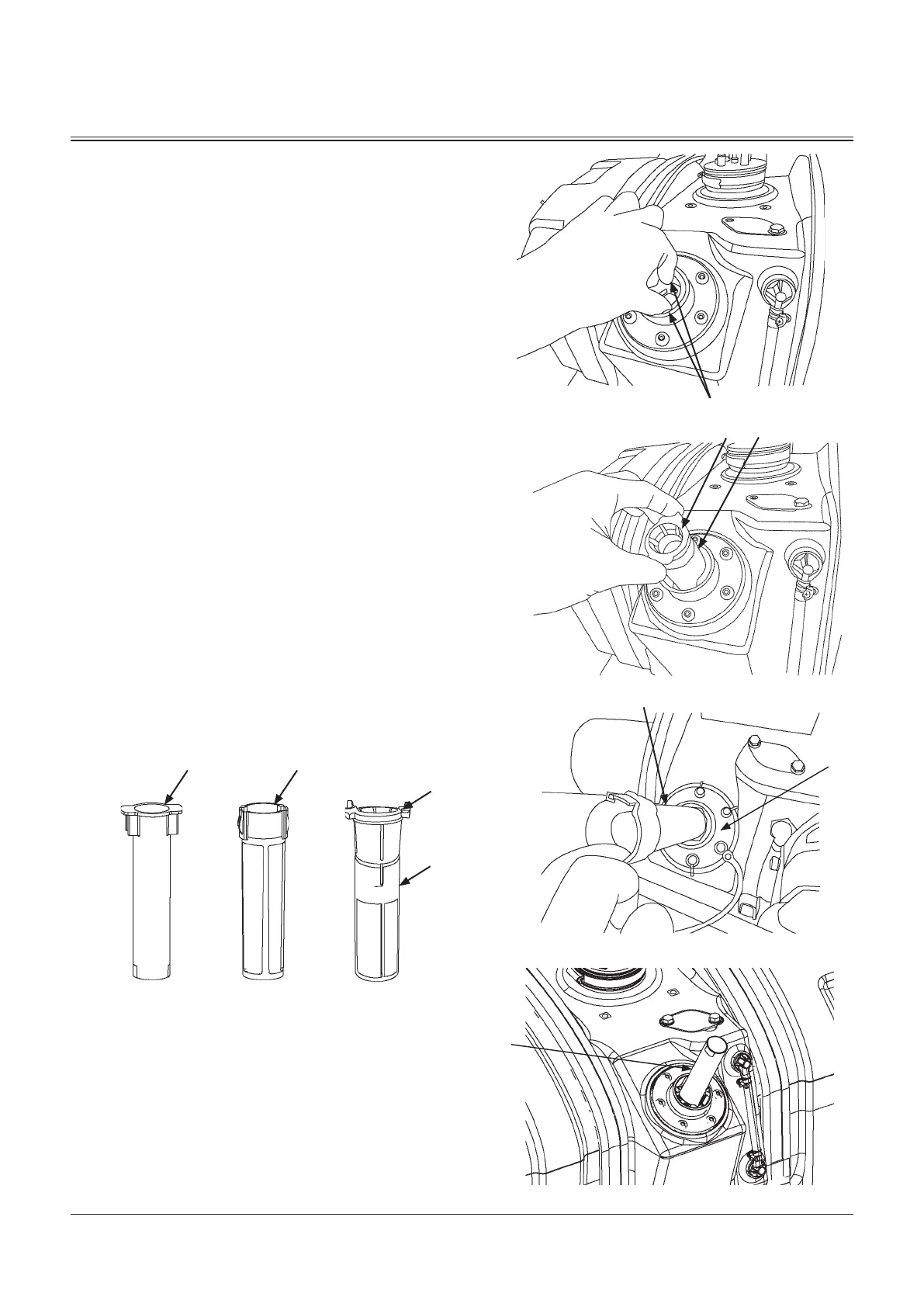

Extendable Filler Neck
When refilling DEF/AdBlue® by using a container with a short
nozzle, use the extendable filler neck attached to the machine
for easy refilling.
d
CAUTION: Wear safety equipment such as safety
glasses or goggles, rubber gloves appropriate to
the job. Wash DEF/AdBlue® with clean water when it
contacts with the skin. If DEF/AdBlue® is accidentally
splashed into eyes, rinse with water for 15 minutes or
longer and seek emergency medical attention.
IMPORTANT: Take care not to allow dust to contaminate
the area when carrying out the work.
1. Hold projected portion (1) on adapter (2) with your
fingers and twist clockwise 90 degrees.
2. Pull out adapter (2). Strainer (3) is removed with adapter
(2) at the same time.
3. Install strainer (5) for the extendable filler neck to holder
(4).
4. Insert extendable filler neck (6) into the filler port, twist
clockwise 90 degrees to fix, then fill DEF/AdBlue®.
f
NOTE: After filling DEF/AdBlue®, remove extendable filler
neck (6) and twist counterclockwise 180 degrees to put it into
strainer (5).
6 5
2
3
MJAG-07-070 MJAG-07-071 MJAG-07-072
To Next Page
