BLADE
OPTIONAL ATTACHMENTS AND DEVICES
Blade Maintenance
Greasing --- every 250 hours

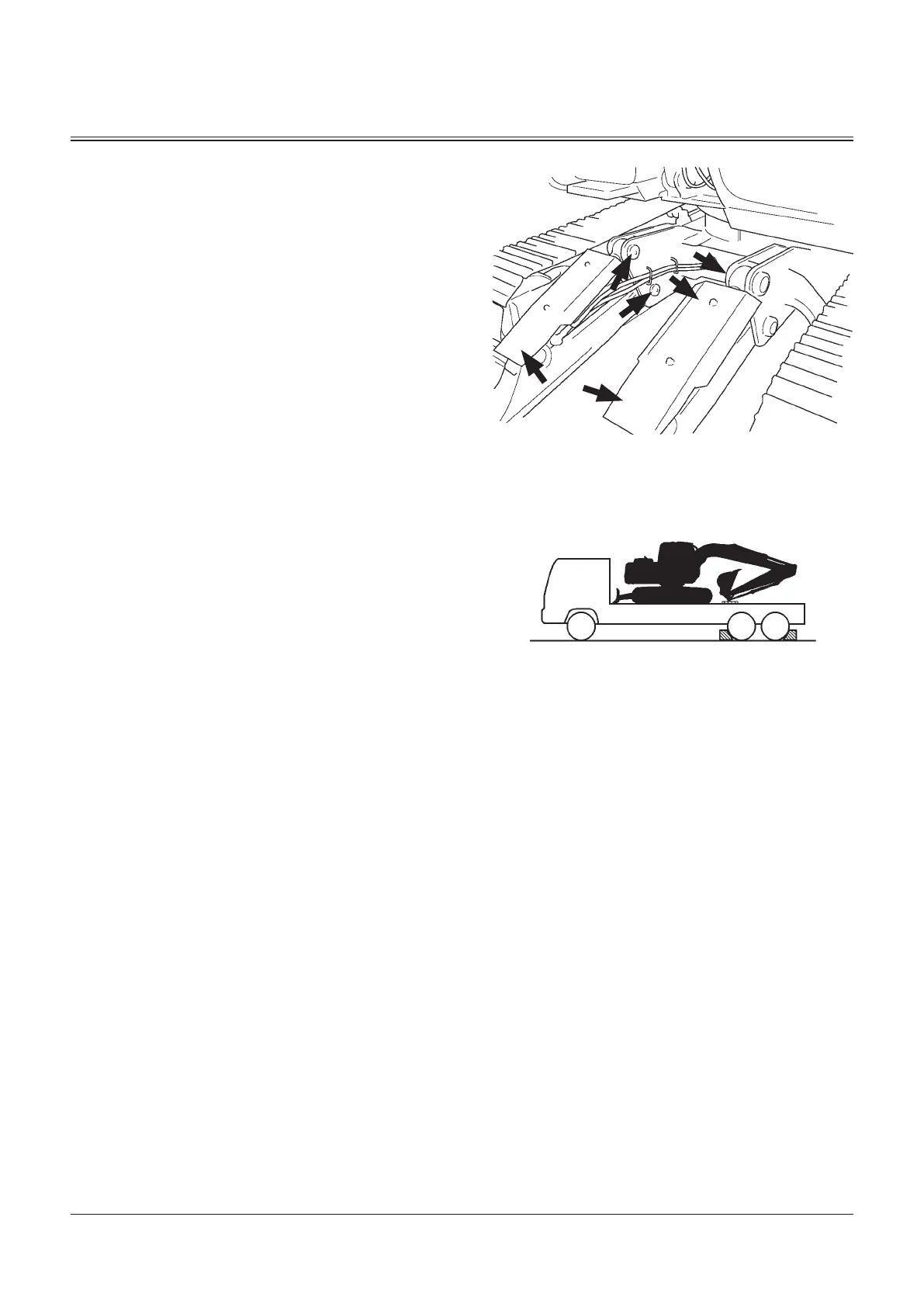

Lubricate all fittings shown in the figure.
Blade Joint Pins (2 points)
Blade Cylinder Rod (2 points)
Blade Cylinder Bottom (2 points)
Transportation Figure for Machine Equipped with Blade
When transporting the machine equipped with a blade
and a long arm front attachment on a trailer, place the
blade in the opposite position toward the front attachment.
Otherwise, the bucket may come in contact with the blade.
M175-13-002
M175-13-005
