13-14
BUCKET TEETH
OPTIONAL ATTACHMENTS AND DEVICES
Bucket Teeth (Transverse-Type-Pin-Used Type)
ZX200-6, 240-6, 300-6, 330-6 class
Replacement Procedure
d
CAUTION: Guard against injury from flying pieces of
metal. Wear goggles or safety glasses.

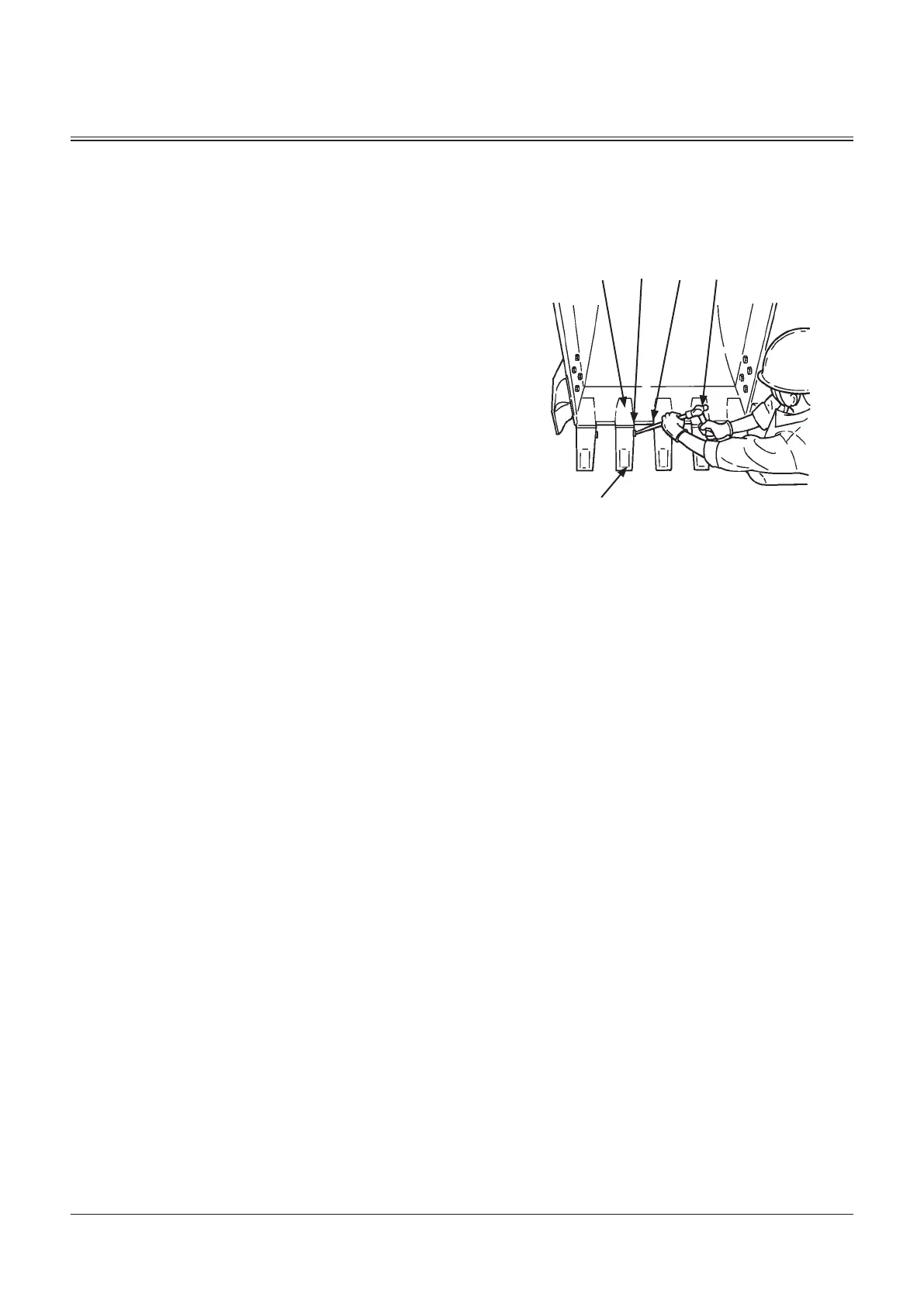

1. Securely lower the bucket to the ground.
2. Use hammer (3) and drift (2) to drive out transverse-type
lock pin (1) to remove tooth (4).
f
NOTE: Be sure to use drift (2) thinner than lock pin (1).
3. Clean shank (5) surface. Attach a new tooth (4) onto
shank (5). Insert lock pin (1) as deep as it goes. Then,
drive lock pin (1) using hammer (3) and drift (2) to
securely lock tooth (4).
M157-14-013
5 1 2 3
4
