Hitachi ZAXIS 120-6 class User Manual

1-147
OPERATOR'S STATION
Installation and Adjustment of Mirrors
d
WARNING:
 Adjust the mirrors, referring to the field of vision in
the mirrors in the "VISIBILITY MAP" chapter.
Perform adjustment with the machine position as
shown.
 If the mirrors are adjusted improperly, the field of
vision cannot be ensured and/or will be obstructed,
which may result in serious personal injury.
 Check the field of vision in the mirrors every day
before starting work.
 If any of the mirrors are dirty, clean them.
 Ensure appropriate footing when adjusting or
cleaning mirrors.
IMPORTANT: Mirrors and cameras only act as aids. Before
operating the machine, always check the area around
the machine thoroughly.
IMPORTANT: If a modification is made that could restrict
the field of vision, it may result in an obstruction to the
field of vision, so check the field of vision again.

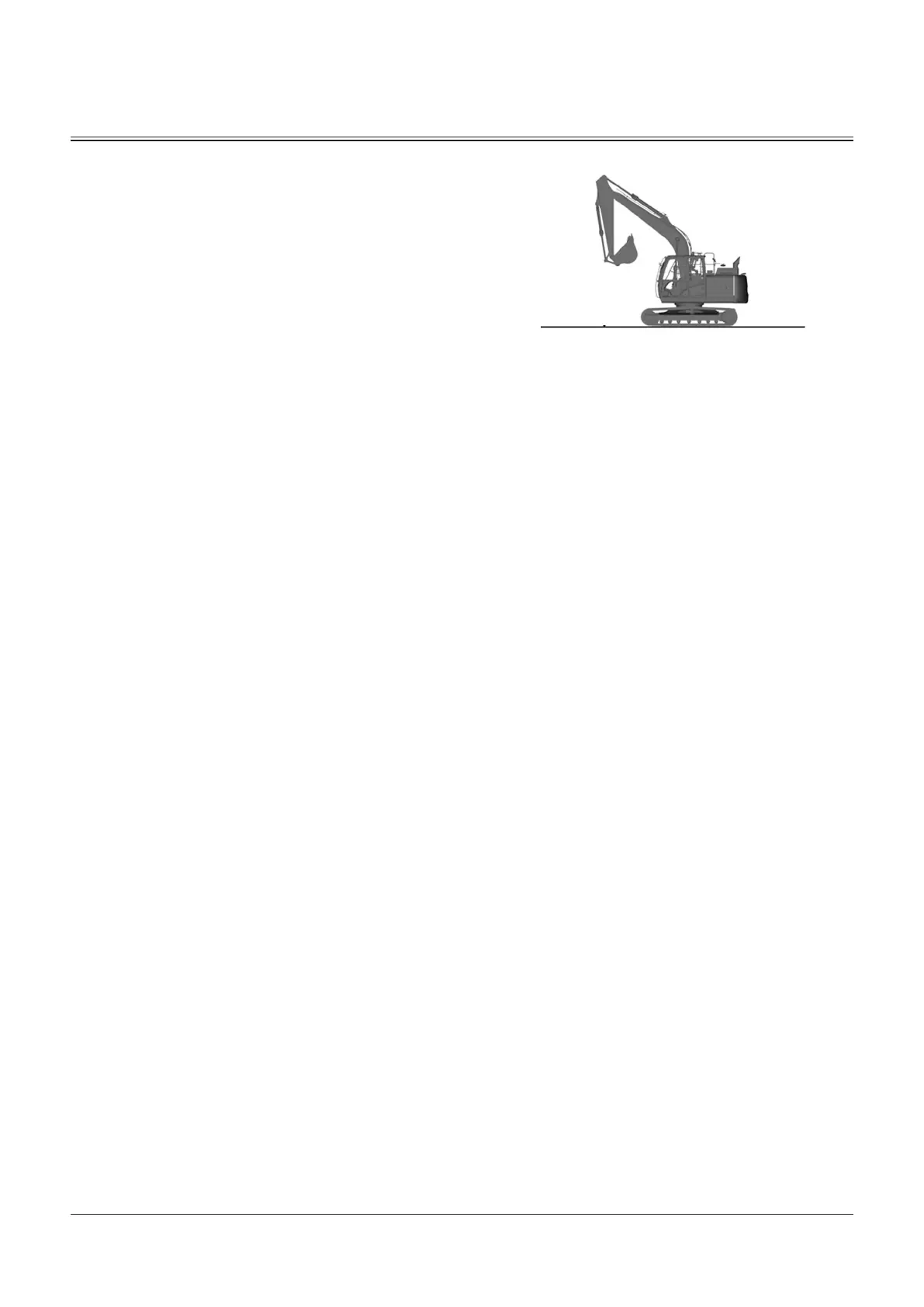

Machine Position Image
(Monoblock Boom)
MDC1-VM-001
