SPECIFICATIONS

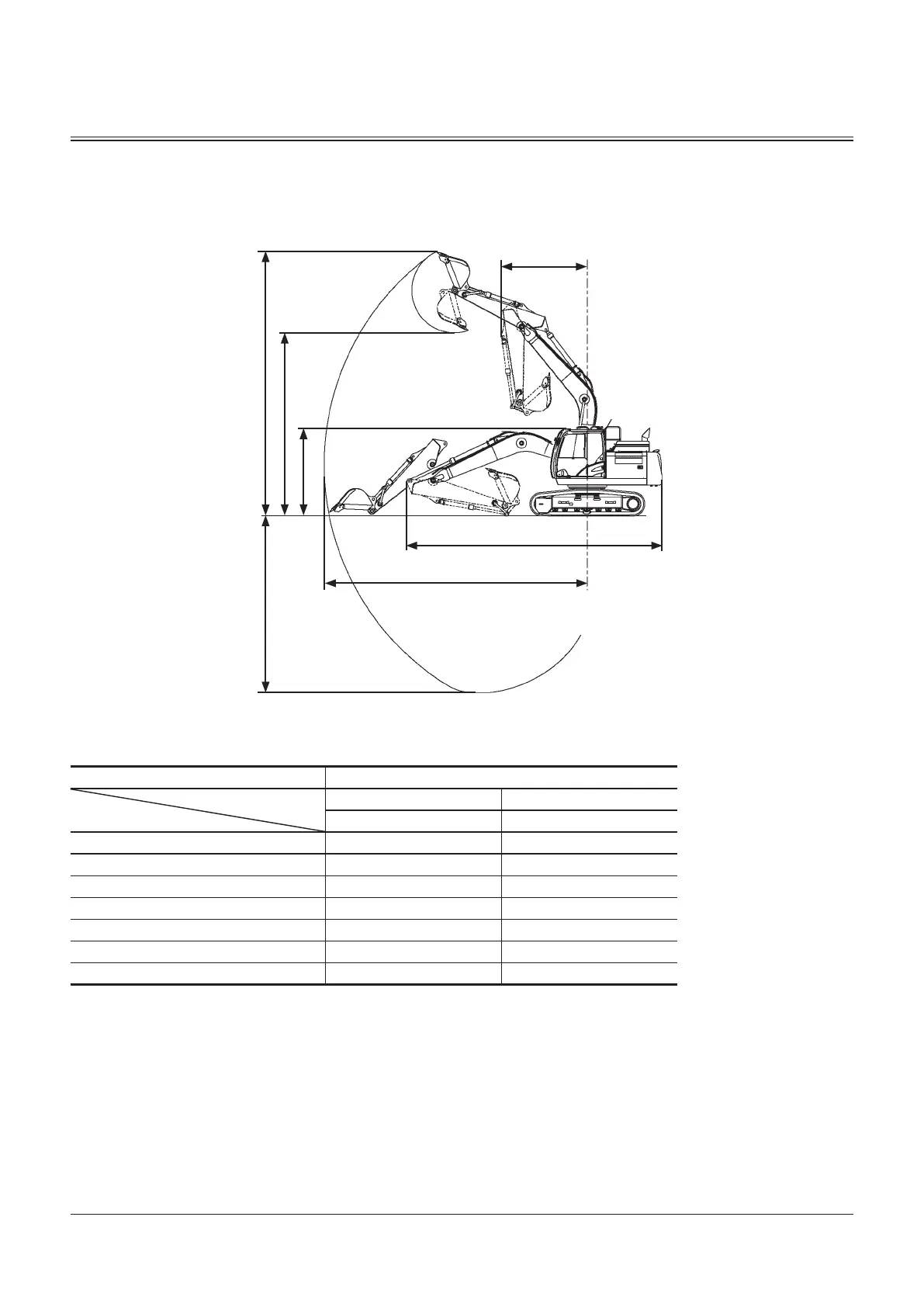

Working Ranges (Grouser shoe)
ZX160LC-6
Model ZX160LC-6
Category
Item
2.22 m Arm 2.58 m Arm
mm mm
A : Maximum Digging Reach 8520 8870
B : Maximum Digging Depth 5620 5980
C : Maximum Cutting Height 8620 8890
D : Maximum Dumping Height 5940 6160
E : Overall Height 3190 3030
F : Overall Length 8720 8620
G : Minimum Swing Radius 3290 2910
f
NOTE: The dimensions do not include height of the shoe lug. (Except Item E)
MDC1-12-016
A
G
B
D
C
F
E
