Hitachi ZAXIS 120-6 class User Manual

1-6
OPERATOR'S STATION

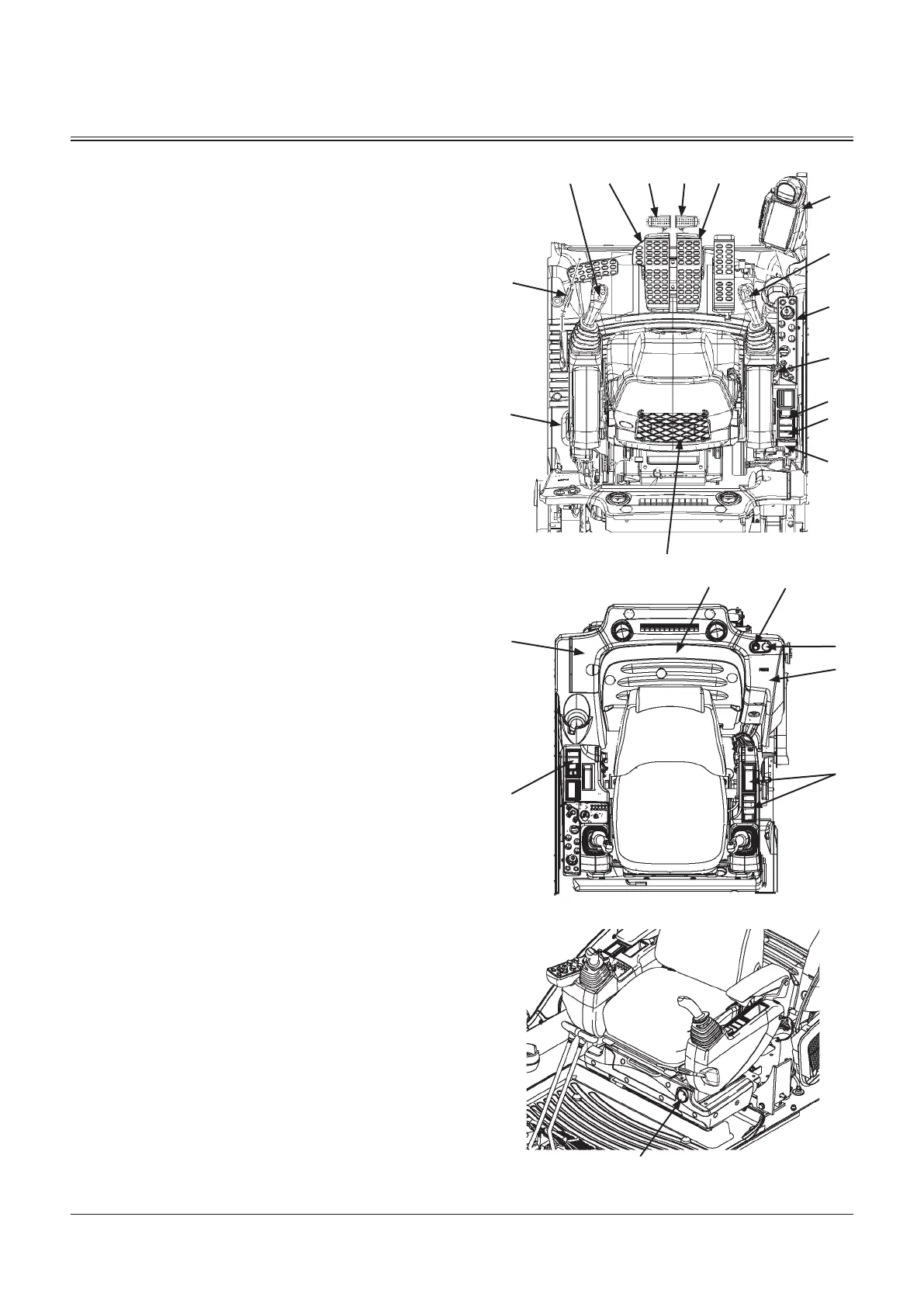

Cab Features
1- Left Control Lever/Horn Switch
2- Left Travel Pedal
3- Left Travel Lever
4- Right Travel Lever
5- Right Travel Pedal
6- Right Control Lever/Power Boost Switch
7- Multi Function Monitor Panel
8- Switch Panel
9- Key Switch
10- Regeneration Switch
11- Operator's Seat
12- Cab Door Release Lever
13- Pilot Control Shut-Off Lever
14- Glove Compartment
15- Fuse Box
16- Cigar Lighter
17- Switch Panel (for Optional Equipments)
Glove Compartment (without Optional Equipment)
18- Glove Compartment (Hot and Cool Box)
19- Engine Stop Switch
20- 12 V Power Supply
21- USB Power Supply port
22- Screen Changeover Switch
23- Auxiliary
1 2 3
7
6
9
10
23
21
15
16
20
14
11
19
12
13
18
22
8
17
4 5
MDAA-01-289
MDAA-01-290
MDAA-01-363
