HYDRAULIC BREAKER, HYDRAULIC CRUSHER AND QUICK COUPLER
OPTIONAL ATTACHMENTS AND DEVICES
Attachment Connection Parts

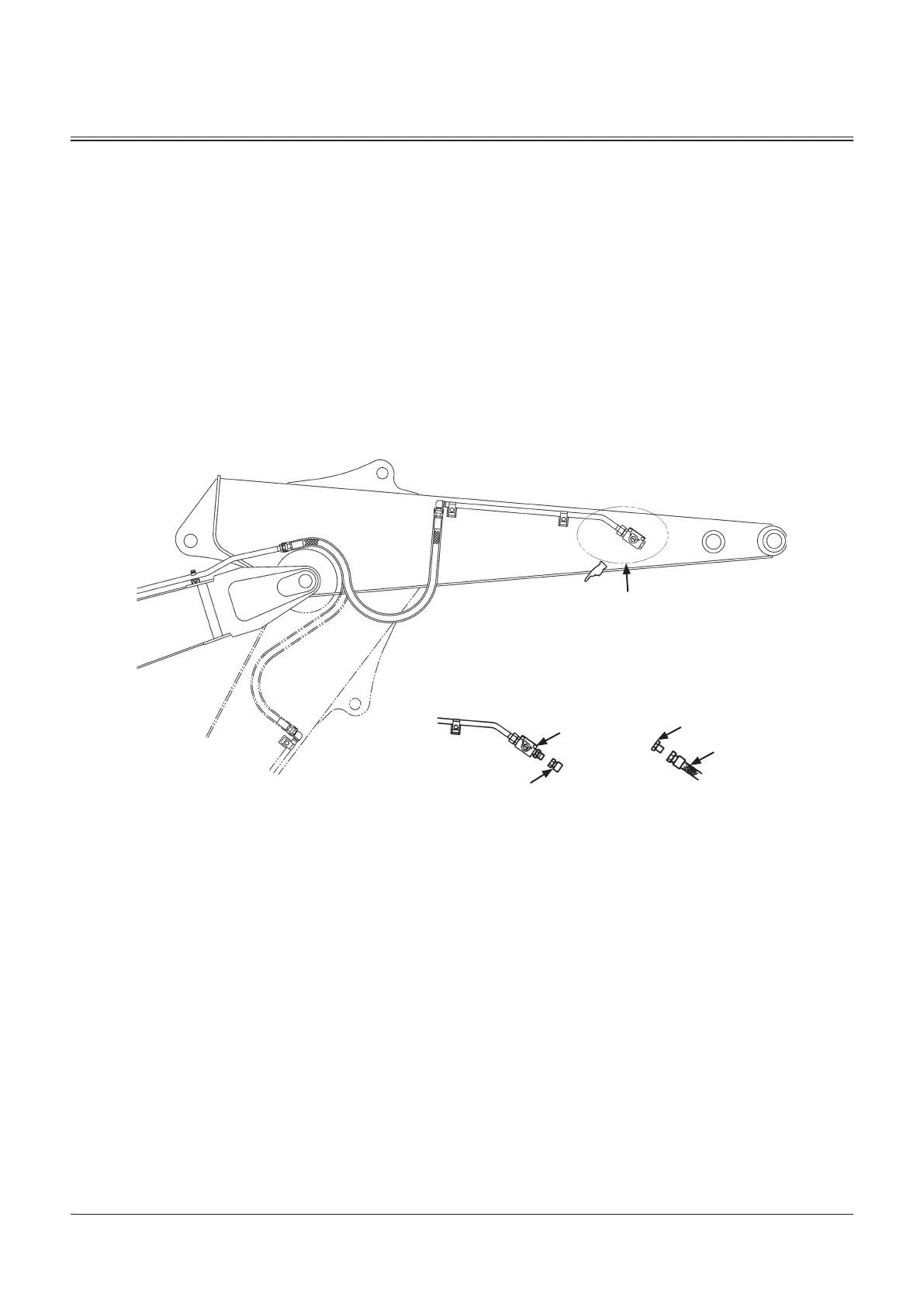

The attachment hydraulic line and connection parts are
located as illustrated below.
When the attachment is disconnected, be sure to install caps
or plugs to the ends of both the arm and attachment side
hydraulic lines to prevent dust from entering or from sticking.
Adapter tightening torque:
G1: 210 N·m (21 kgf·m)
G1-1/4: 340 N·m (34 kgf·m) (ZX330-6 class only right side
piping)
When the attachment is disconnected
Plug
Plug Thread Size: JIS B2351 O-Type G1
Plug Thread Size: JIS B2351 O-Type G1-1/4
(ZX330-6 class only right side piping)
Adapter
Plug
Hose
Cap
M175-05-005
