5-22
OPERATING THE MACHINE

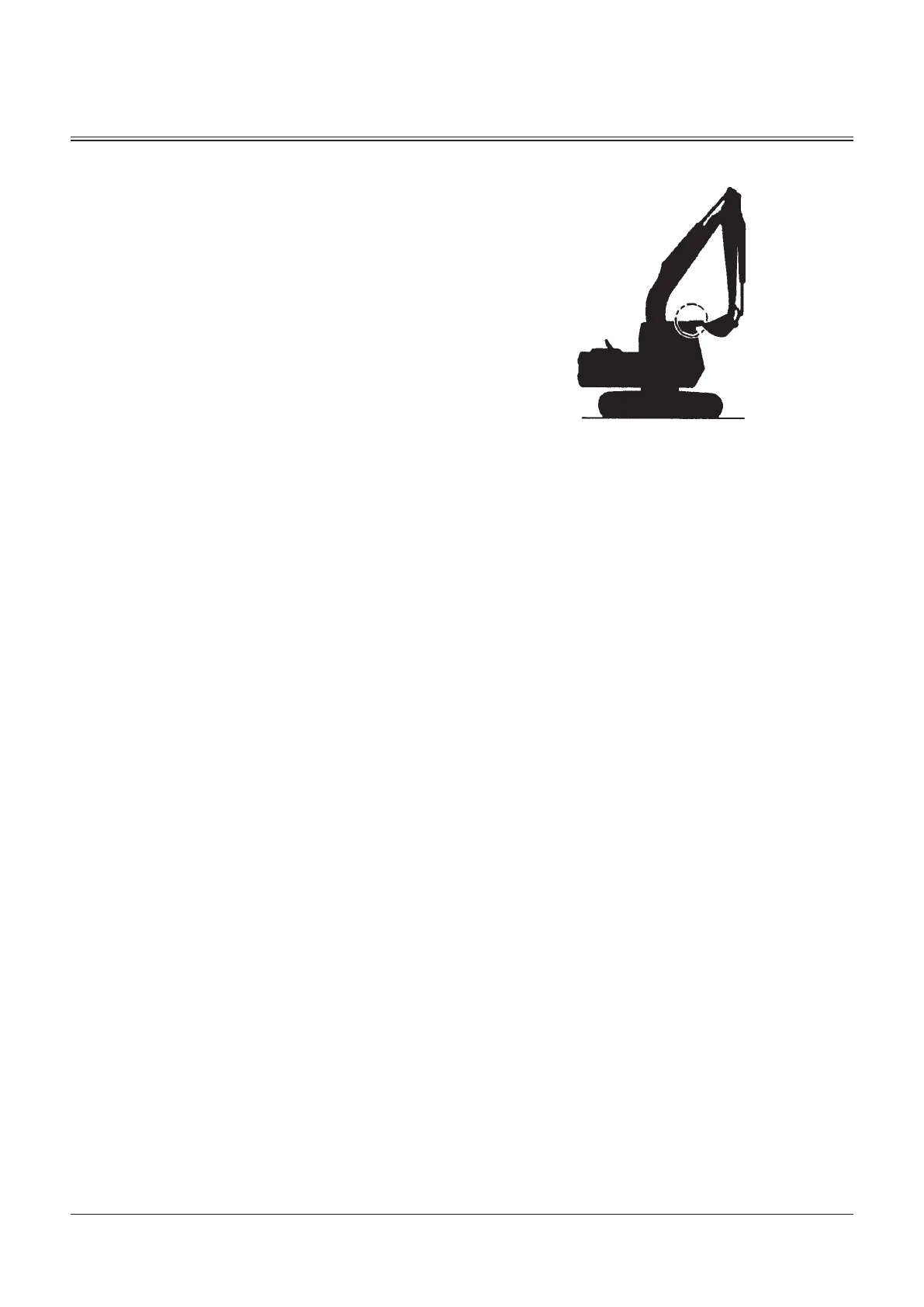

Retracting the Arm and Bucket
Pay attention to the following when installing cab equipment
(optional) such as OPG (level 2) front guard, OPG (level 2) head
guard, rain visor, cab top lights (4 lights), etc.
d
CAUTION: When the machine is equipped with
the cab equipment mentioned above, the teeth of
the bucket may hit the cab equipment if the arm
is retracted excessively. Be careful not to hit the
cab equipment with the teeth of the bucket when
retracting the arm.
Do Not Use Wide Track Shoes on Rough Ground
Never use wide track shoes on rough ground such as rocks,
sand or gravel. Wide track shoes are designed for soft ground.
Failure to do so may result in shoe bending and/or shoe bolt
loosening, and may damage other undercarriage components
such as track link and rollers.
(Refer to the "Shoe Types and Applications" in the
Specifications chapter.)
M107-05-072
