1-148
OPERATOR'S STATION

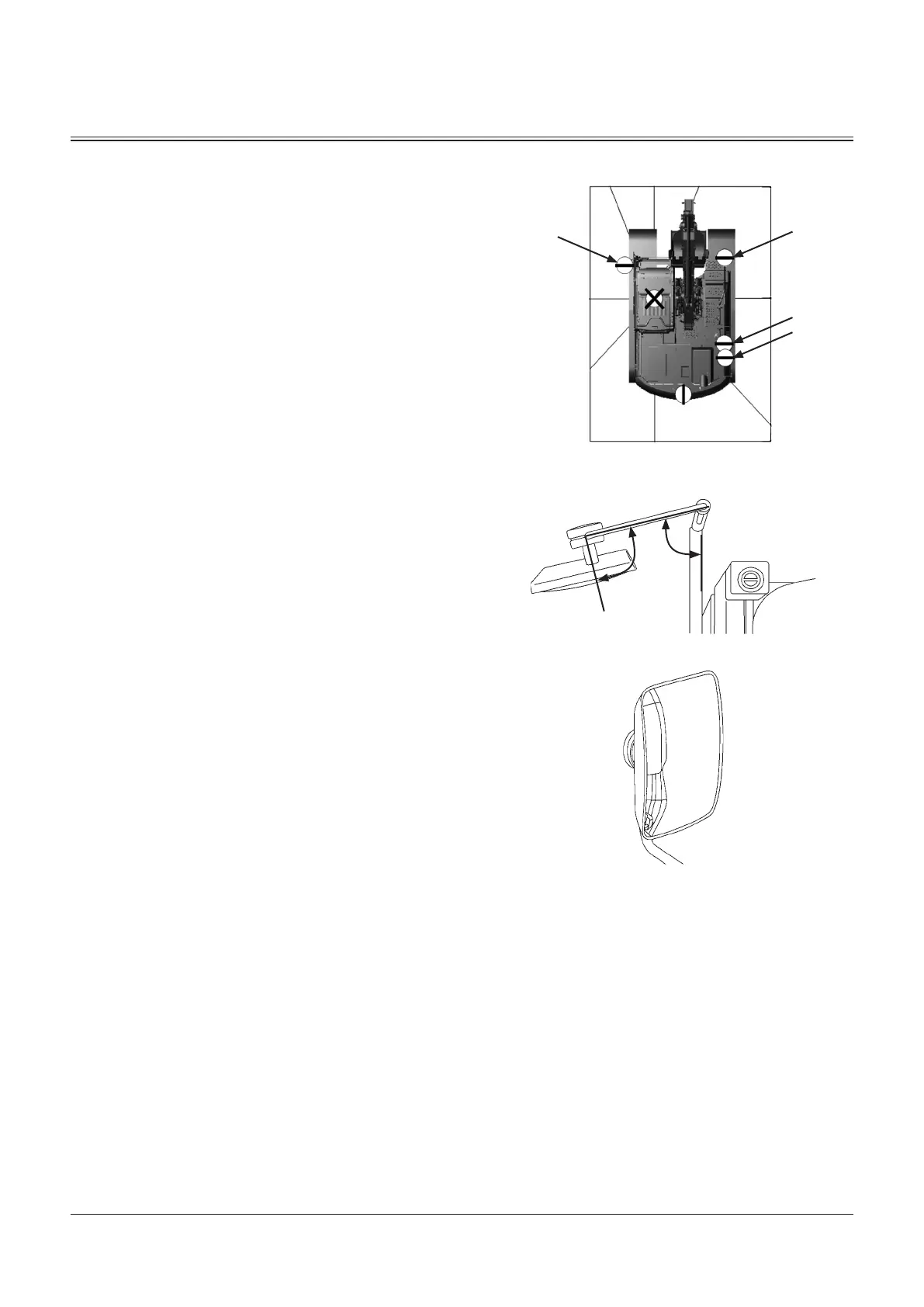

Mirror Installation Diagram
The mirror installation locations (1, 2, 3, 4) on this machine are
shown in the right.
Adjust the installation locations of each mirror by following
the instructions below to ensure safety.
Installation angle and dimension varies depending on the
model.
1- Operator's Seat Mirror
2- Handrail Mirror for Getting ON/OFF the Machine
3- Oil Tank Handrail Mirror (Front)
4- Oil Tank Handrail Mirror (Rear)
The following models are not equipped with oil tank
handrail mirrors (front) (3) or (rear) (4).
Operator's Seat Mirror (1)
Adjust the mirror to the specified position.
Handrail Mirror for Getting ON/OFF the Machine (2)
Adjust the mirror so that the side of the machine appears
on the mirror as shown in the right.
Adjust the mirror so that a range of at least 1 m from the
right side of the machine can be seen from the operator’s
seat.
75°
90°
MDC1-01-550
1
2
3
4
MDC1-01-548
MDC1-01-594
To Next Page
