1-149
OPERATOR'S STATION
Oil Tank Handrail Mirror (Front) (3)

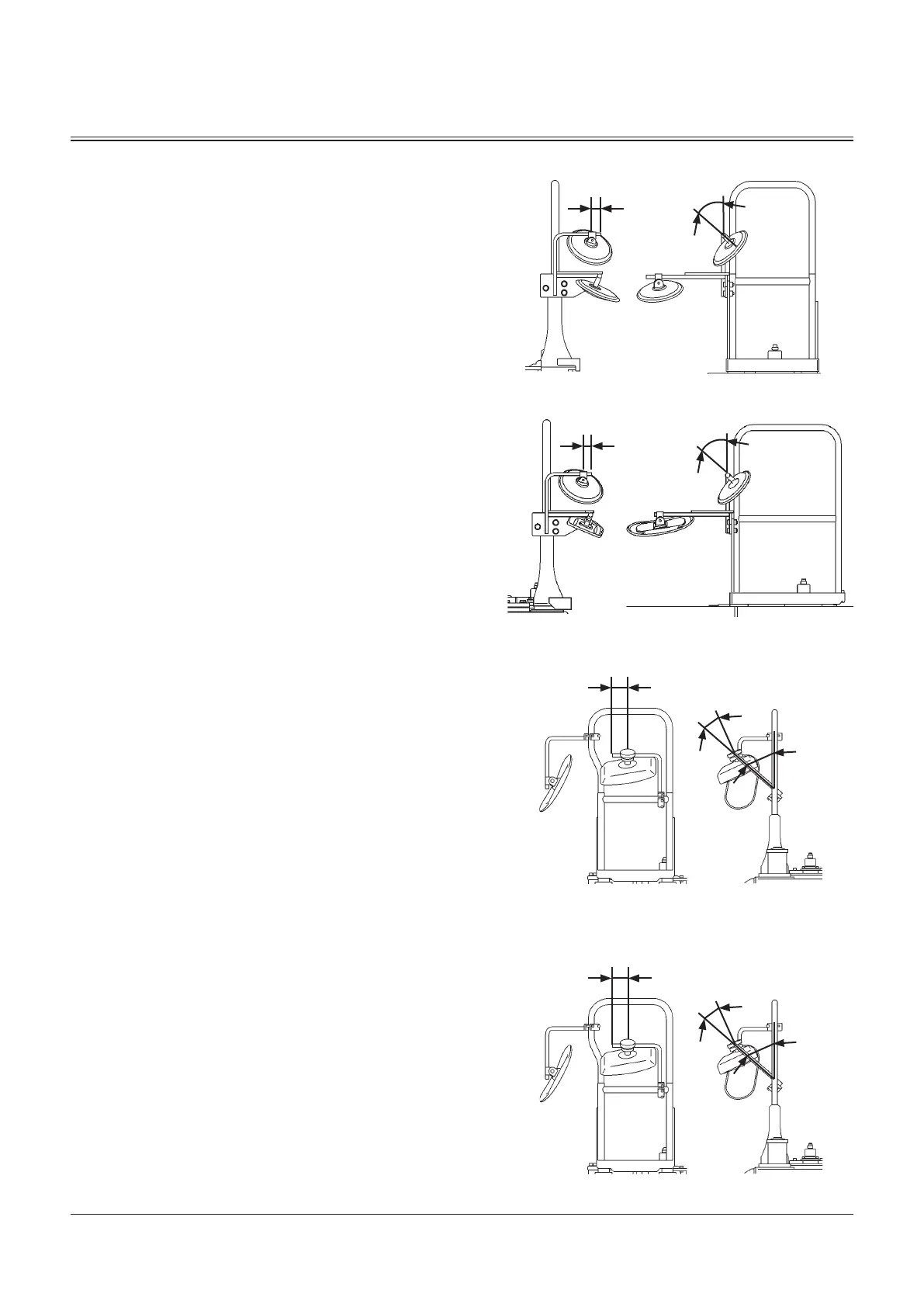

Adjust the mirror to the specified position.
Adjust the mirror so that a range of at least 1 m from the
right side of the machine can be seen from the operator’s
seat.
ZX130-6
MDC1-01-551
10°
35°
80 mm
MDC1-01-551
25°
50°
ZX210LC-6, 250LC-6,
350LC-6
ZX300LC-6
80 mm
MDC1-01-557
35 mm
45°
ZX160LC-6
MDC1-01-558
45°
35 mm
