12-22
SPECIFICATIONS

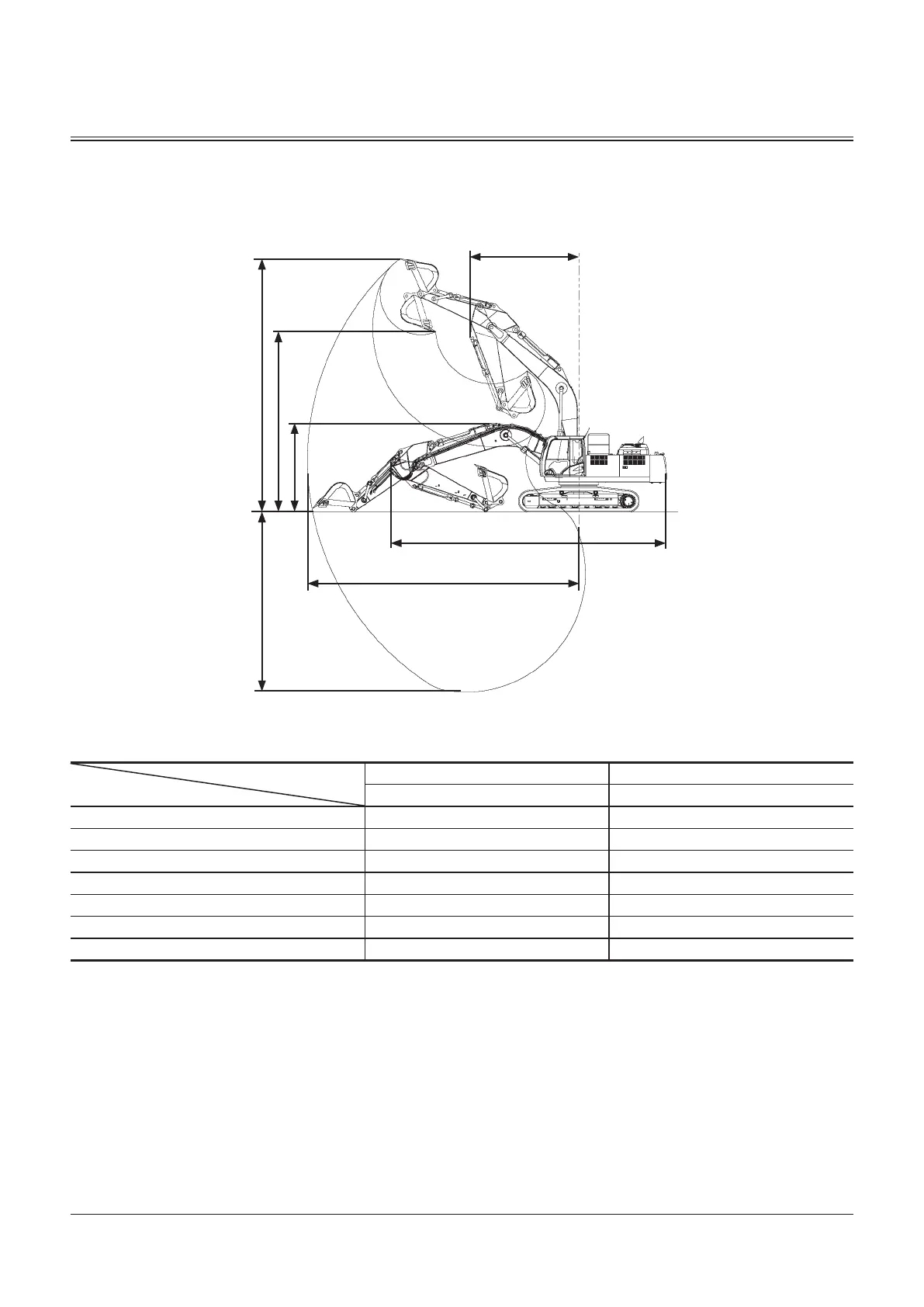

Working Ranges (Grouser shoe)
ZX350LC-6
Category
Item
3.2 m Arm 4.0 m Arm
mm mm
A : Maximum Digging Reach 11100 11860
B : Maximum Digging Depth *7380 *8180
C : Maximum Cutting Height *10360 *10750
D : Maximum Dumping Height *7240 *7630
E : Overall Height 3270 3600
F : Overall Length 11220 11310
G : Minimum Swing Radius 4460 4470
f
NOTE: * The dimensions do not include the height of the shoe lug.
MDC1-12-006
