SPECIFICATIONS

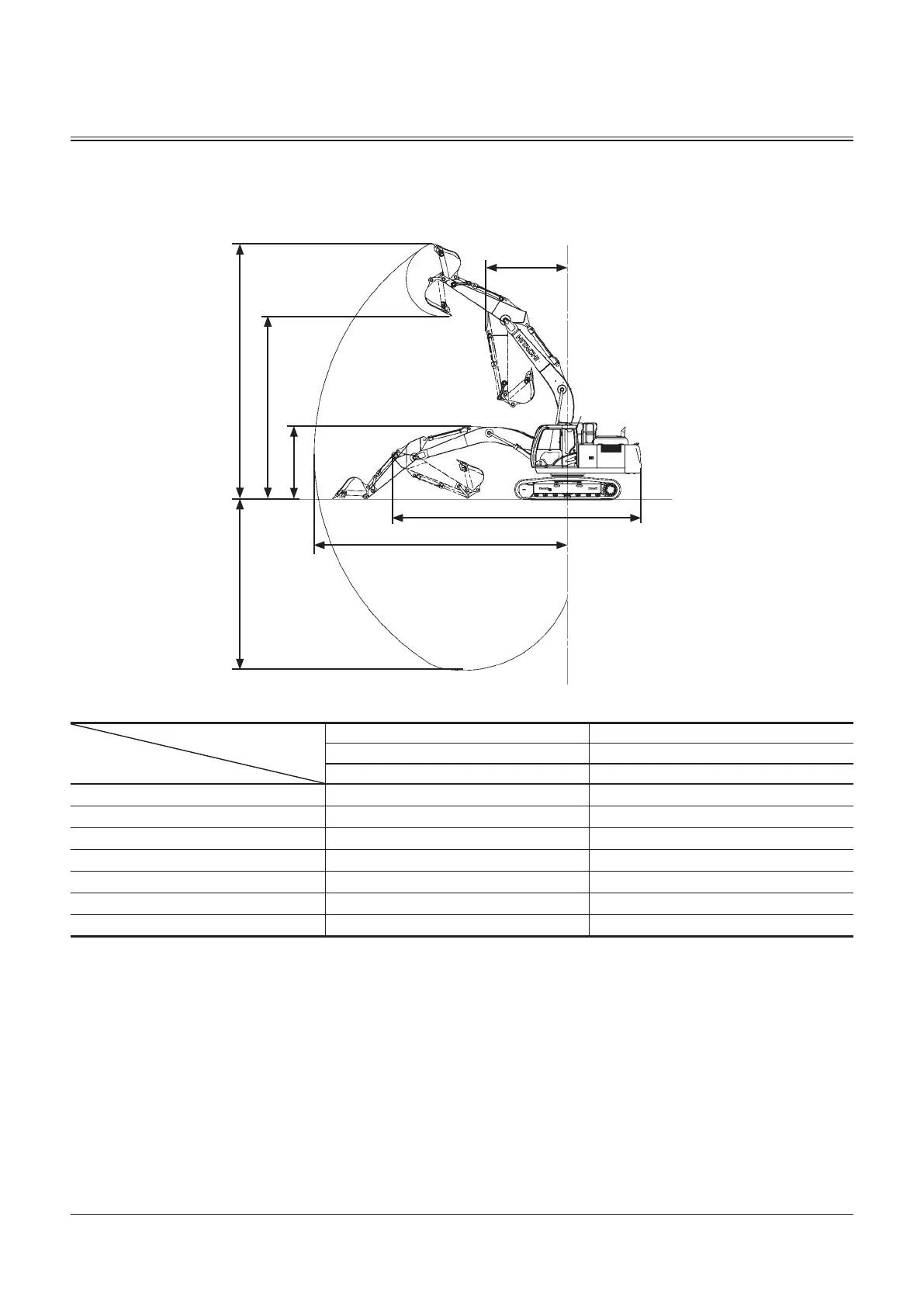

Working Ranges (Grouser shoe)
ZX210LC-6
MDC1-12-020
G
C
D
E
F
A
B
Category
Item
2.42 m Arm 2.91 m Arm
Backhoe Backhoe
mm mm
A : Maximum Digging Reach
9430 9920
B : Maximum Digging Depth
6180 6670
C : Maximum Cutting Height
9670 10040
D : Maximum Dumping Height
6830 7180
E : Overall Height
3180 3020
F : Overall Length
9430 9660
G : Minimum Swing Radius
3280 3180
f
NOTE: The dimensions do not include the height of the shoe lug (except Item E).

Hitachi ZAXIS 120-6 class Specifications

General

Brand	Hitachi
Model	ZAXIS 120-6 class
Category	Excavators
Language	English
