Hitachi ZAXIS 120-6 class User Manual

1-134
OPERATOR'S STATION
Removing and Storing Lower Front Window
d
CAUTION: Take care not to get yours fingers caught
when handling the lower front window.

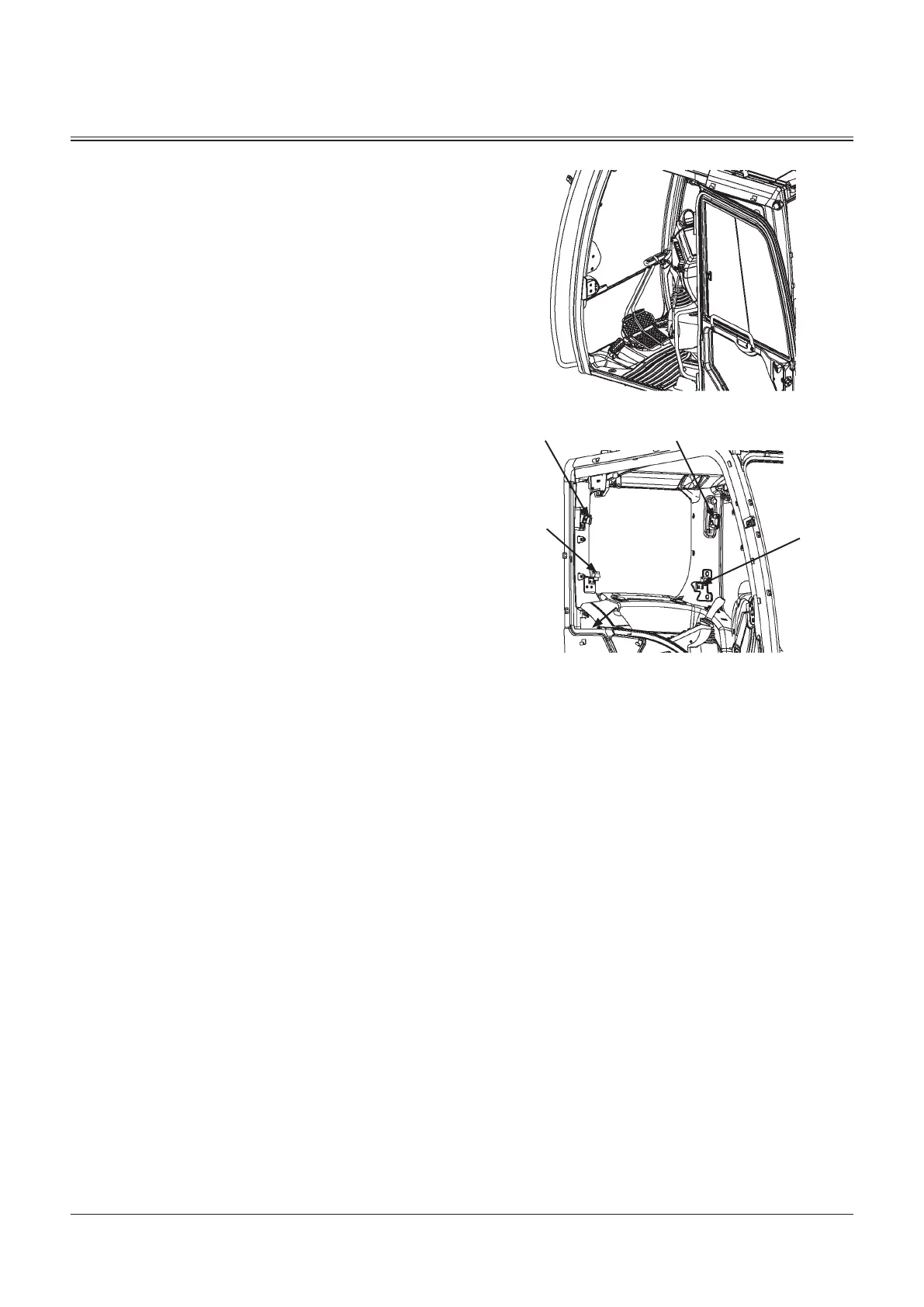

Removing and Storing Lower Front Window
1. Open the upper front window beforehand when
removing the lower front window.
2. While pulling the lower front window inward, raise it to
remove.
3. Store the removed windowpane in the storing position.
After inserting the windowpane into rubber clips (2 and
3), slide it sideways securely into rubber clip (4). Push
fastener (1) to lock.
3
4
3
2
1
MDAA-01-298
MDAA-01-299
