7-3
MAINTENANCE

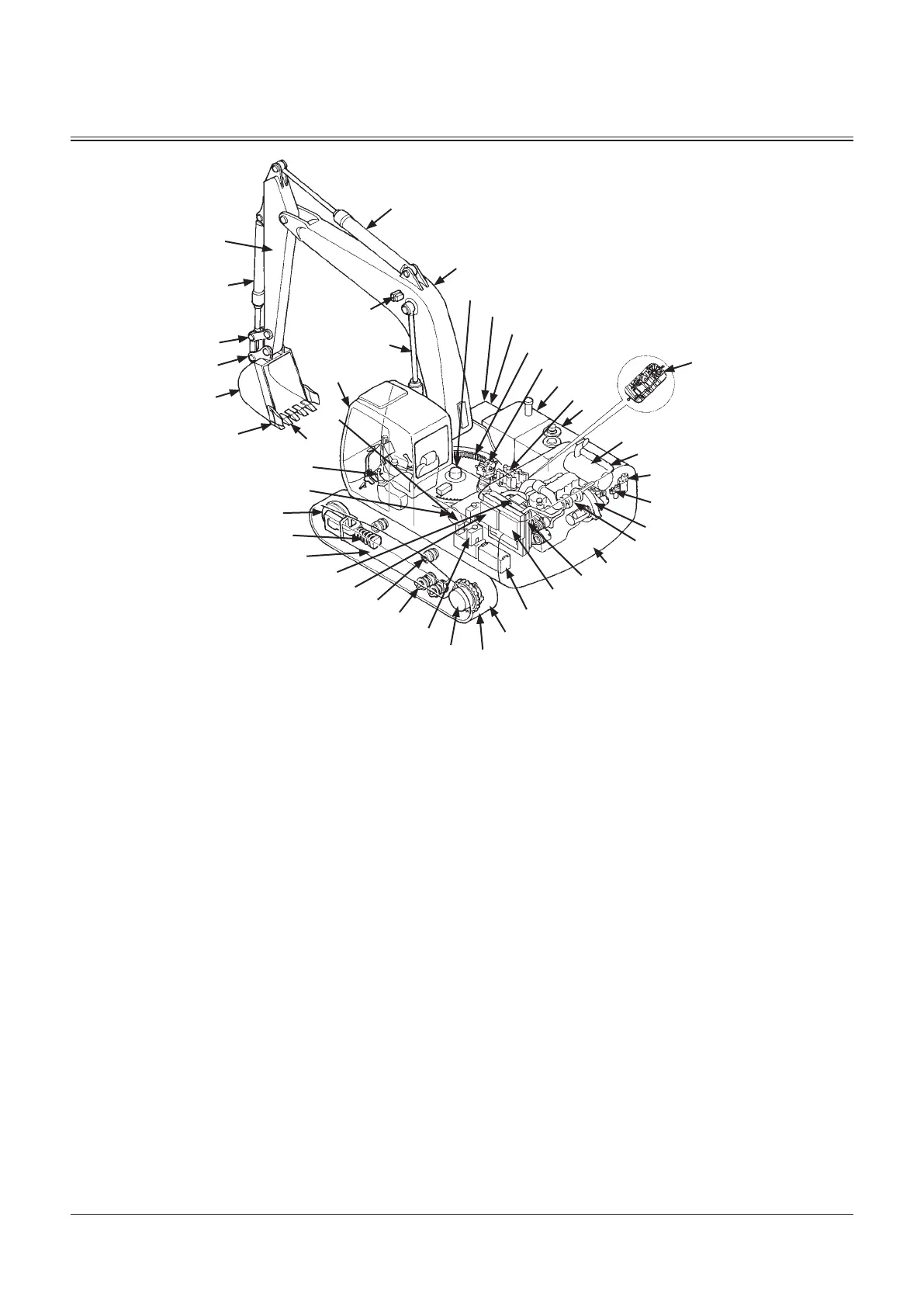

Layout
1- Tooth
2- Side Cutter
3- Bucket
4- Link A
5- Link B
6- Bucket Cylinder
7- Arm
8- Arm Cylinder
9- Boom
10- Center Joint
11- Tools
12- DEF/AdBlue® Tank
13- Swing Bearing
14- Swing Reduction Gear
15- Fuel Tank
16- Control Valve
17- Hydraulic Oil Tank
18- Aftertreatment Device
19- Fuel Filter
20- Engine Oil Filter
21- Pilot Filter
22- Pump
23- Engine
24- Counterweight
25- Radiator, Oil Cooler, Inter
Cooler
26- Air Conditioner Condenser
27- Battery
28- Track Link
29- Shoe
30- Travel Device
31- Washer Tank
32- Lower Roller
33- Upper Roller
34- Fuel Cooler
35- Expansion Tank
36- Track Frame
37- Track Adjuster
38- Front Idler
39- Air Cleaner
40- Control Lever
41- Battery Disconnect Switch
42- Cab
43- Boom Cylinder
44- Work Light
45- DEF/AdBlue® Supply Module
7
8
9
10
11
12
13
14
15
16
17
45
18
19
20
21
22
23
25
26
27
28
29
24
6
5
4
3
2
1
40
44
43
42
41
39
38
37
36
35
34
33
32
31
30
MDC1-07-060
