5-23
OPERATING THE MACHINE
Shackle Hole Usage
A shackle hole is provided on the track frame to tow light
weight objects.
IMPORTANT: Be sure to conform to the restrictions and
precautions stated below when towing a light weight
object using the shackle hole provided on the track
frame. The track frame and/or the shackle hole may be
damaged otherwise.
The maximum drawbar pull is as below.
Model Maximum Drawbar Pull
ZX120-6 class 44100 N (4500 kgf) or less
ZX160-6 class 53900 N (5500 kgf) or less
ZX200-6, 240-6, 300-6,
330-6 class
73600 N (7500 kgf) or less
Be sure to use a shackle.
Keep the tow line horizontal, straight, and parallel to the
tracks.
Select the slow travel mode. Slowly drive the machine when
towing.

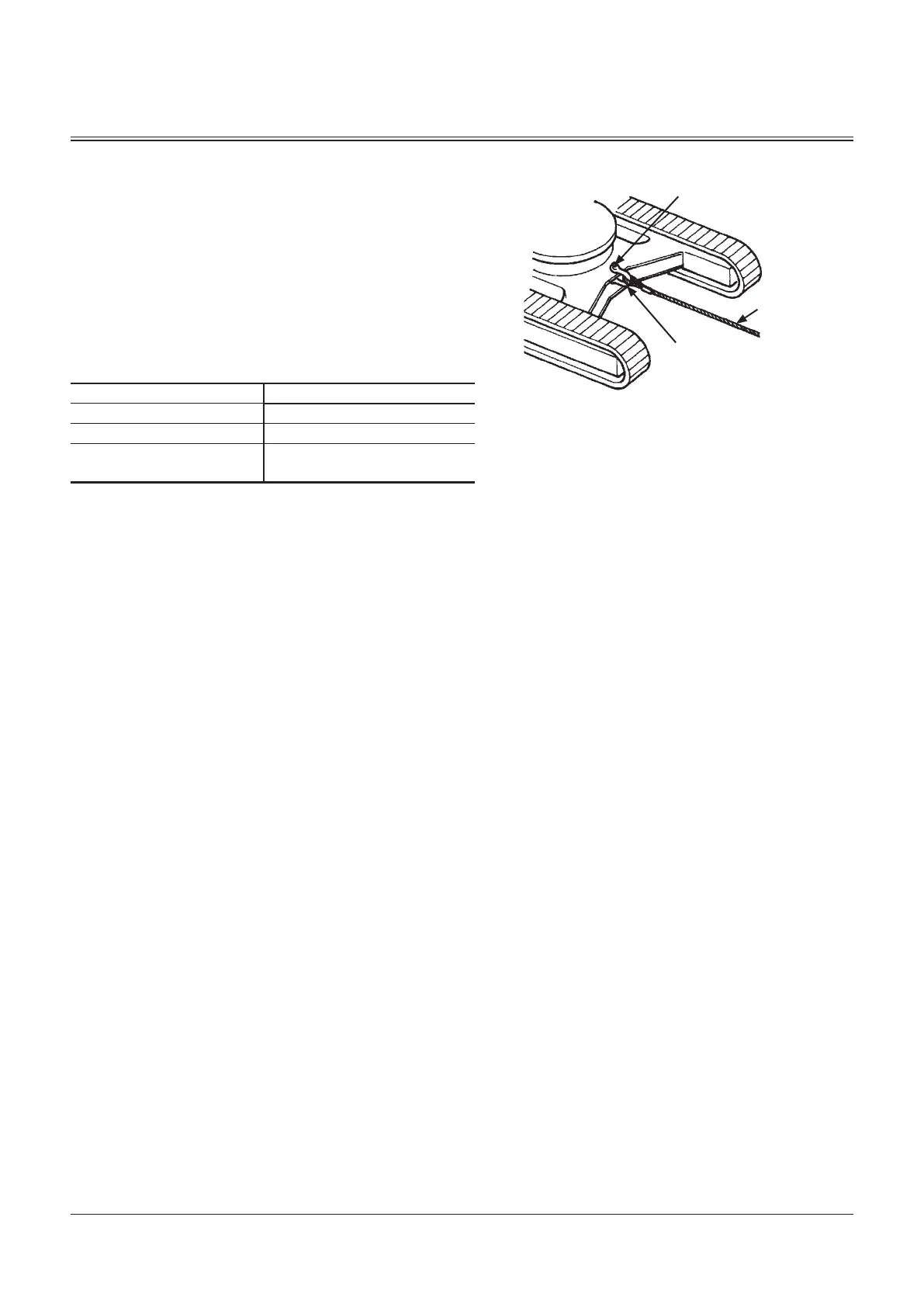

Shackle
Shackle hole for towing light
weight objects.
Wire Rope
M104-05-011
To Next Page
