1-143
OPERATOR'S STATION

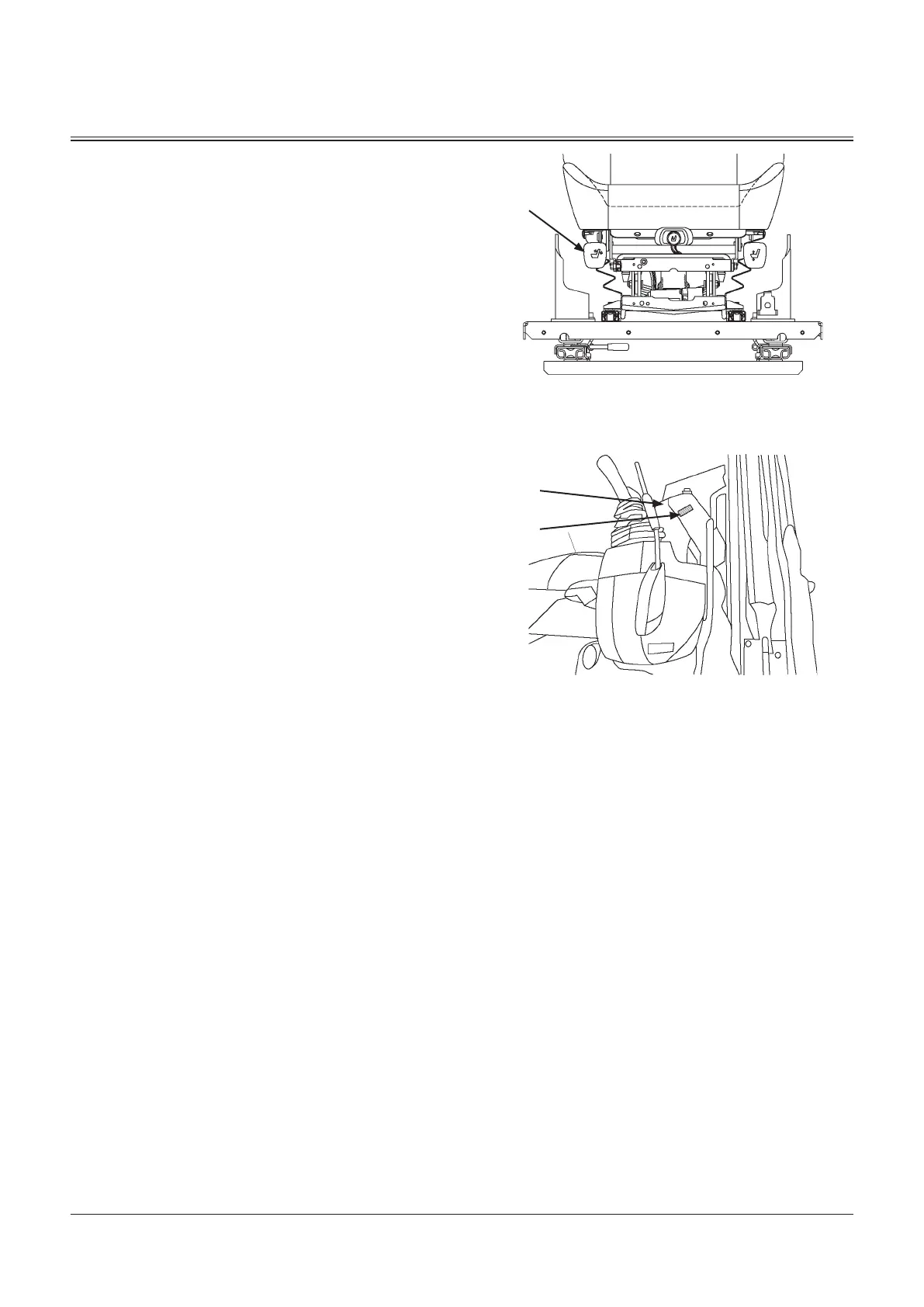

Backrest Adjustment
Pull up lever (5) to release backrest lock. Move backrest to
the desired position and release lever (5).
Armrest Adjustment
Armrest (6) can be pulled upright by hand 90 °. Pull armrest
(6) upright by hand to get on and off the machine easily.
The angle of armrest (6) can be adjusted to the desired
position by turning adjusting dial (7) located on the bottom
of armrest (6).
5
MDAA-01-332
MDC1-01-512
7
6
